Sub Frame: Removal

  1. Remove the under cover front and the under cover COMPL front T/M. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .

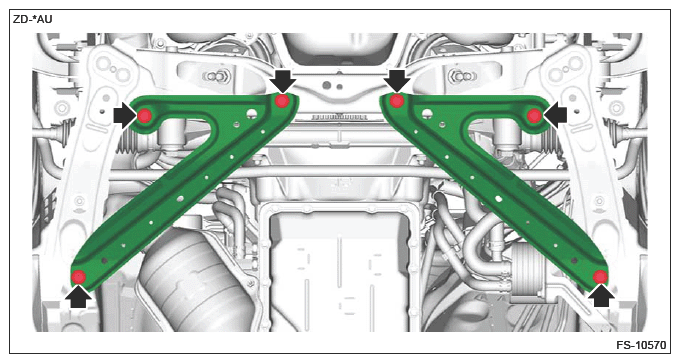

  2. Remove the bolts, and remove the sub frame front LWR C COMPL.
G16524787Courtesy of SUBARU OF AMERICA, INC.
