Front Toe-In

When adjusting the toe-in, adjust it to the following value.

Toe-in: Adjustment value

0±2 mm (0±0.08 in)

1. Check that the left and right wheel steering angles are within specification.

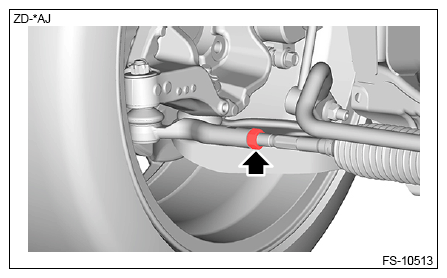

2. Loosen the tie-rod end lock nuts on the left and right sides.

   Courtesy of SUBARU OF AMERICA, INC.

3. Turn the left and right tie-rods by equal amounts until the toe-in is at the specification.
   NOTE:

   • Both the left and right tie-rods are right-hand threaded. To increase toe-in, turn both tie-rods counterclockwise by equal amount (viewing from the inside of vehicle).
   • When adjusting toe-in, hold the boot steering gearbox as shown to prevent it from being rotated or twisted. If it becomes twisted, straighten it.

   Courtesy of SUBARU OF AMERICA, INC.

4. Tighten the tie-rod end lock nut.

   Tightening torque:

   85 N.m (8.7 kgf-m, 62.7 ft-lb)
