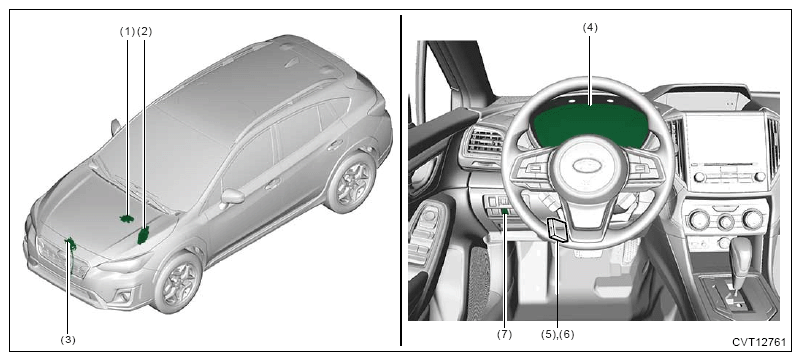

Auto Start Stop System (Diagnostics): Electrical Component Location: Location
| (1) | TCM |
| (2) | ECM |
| (3) | Front hood lock ASSY (with integrated hood switch) |
| (4) | Combination meter |
| (5) | DC/DC converter 1 |
| (6) | DC/DC converter 2 (with audio amplifier) |
| (7) | Auto Start Stop cancel switch |
| (1) | Electric oil pump |
| (2) | Inhibitor switch |
| (1) | Electric oil pump relay |
| (2) | Starter relay |
| (3) | Starter cut relay |
