Rear Gate Lock

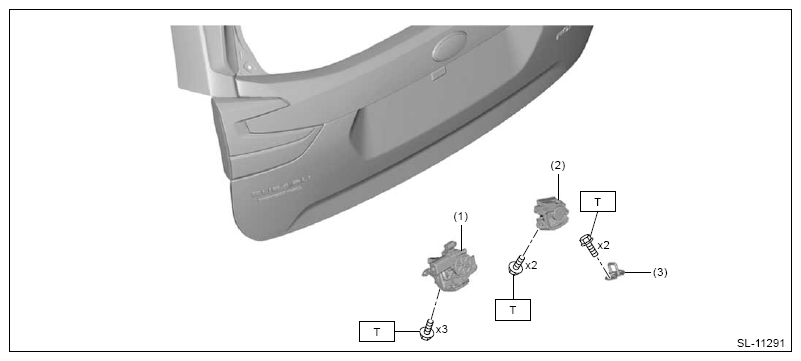

Fig 1: Rear Gate Lock Components Location
G16339391Courtesy of SUBARU OF AMERICA, INC.
(1) Latch and actuator rear gate PRG
(2) Latch and actuator rear gate
(3) Striker rear gate

Tightening torque: N.m (kgf-m, ft-lb)

T: 25 (2.5, 18.4)
