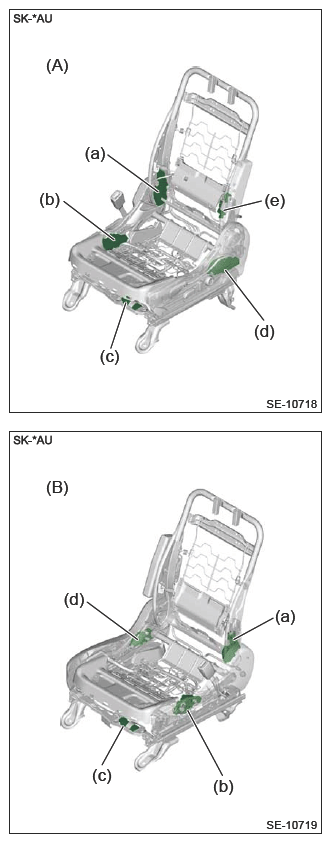

Motor Layout

G16339365Courtesy of SUBARU
(A) Driver's seat
(B) Passenger's seat
(a) Reclining motor
(b) Tilt motor
(c) Slide motor
(d) Lifter motor
(e) Lumbar motor
