Prohibited Area Of Dashboard And Inspection

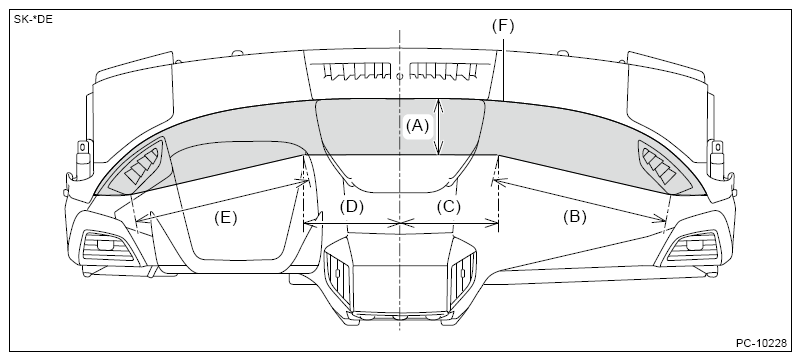

Do not stick or attach the aftermarket parts on the prohibited area (F) shown as follows. If abnormality of the function occurs due to light reflection or glass reflection, even though placed outside the prohibited area, change the attachment position or installation position. Placing a navigation system, ETC device or an object on the dashboard will cause reflection on the windshield glass, affecting the recognition of the stereo camera, thus causing the function not to operate correctly.
| (A) | 120.0 mm (4.72 in) |
| (B) | 380.0 mm (14.96 in) |
| (C) | 210.0 mm (8.27 in) |
| (D) | 210.0 mm (8.27 in) |
| (E) | 380.0 mm (14.96 in) |
| (F) | Prohibited area of dashboard |
