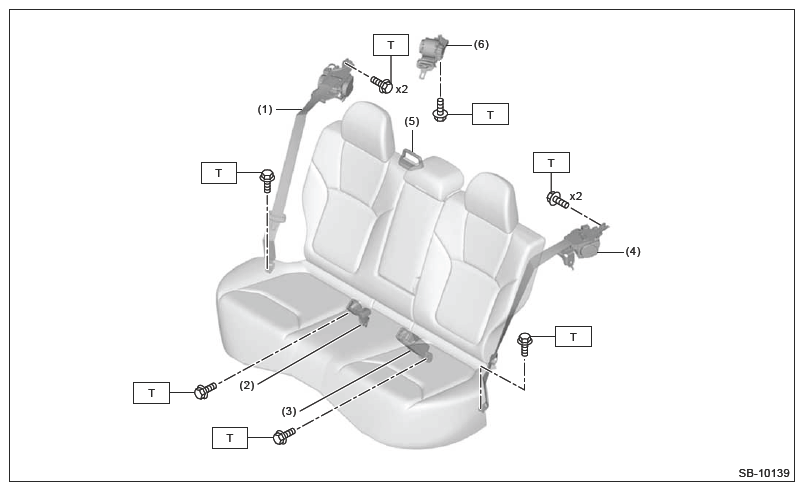

Rear Seat Belt
Courtesy of SUBARU OF AMERICA, INC.
| (1) |
Belt ASSY rear OUT RH |
| (2) |
Belt ASSY rear INN center RH |
| (3) |
Belt ASSY rear INN center LH |
| (4) |
Belt ASSY rear OUT LH |
| (5) |
Guide belt cover |
| (6) |
Belt ASSY rear OUT CTR |
Tightening torque: N.m (kgf-m, ft-lb)
T: 30 (3.1, 22.1)
