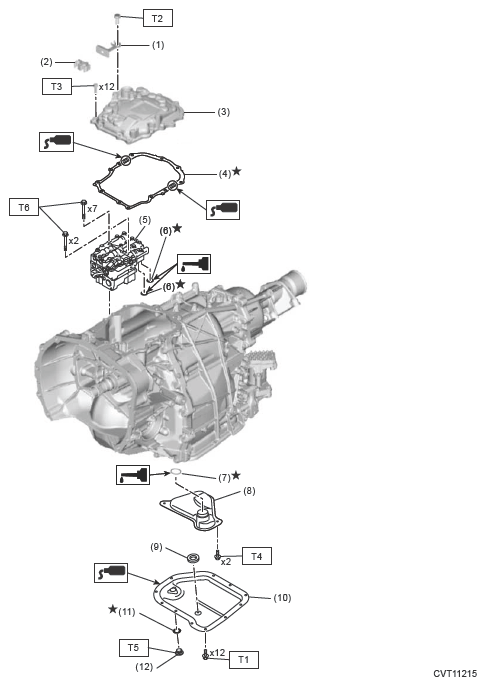

Control Valve Body
| (1) | Air breather hose stay |
| (2) | Air breather hose bracket |
| (3) | Valve cover |
| (4) | Gasket |
| (5) | Control valve body |
| (6) | O-ring |
| (7) | O-ring |
| (8) | Oil strainer |
| (9) | Magnet |
| (10) | Oil pan |
| (11) | Gasket |
| (12) | Drain plug |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 5 (0.5, 3.7)
T2: 7 (0.7, 5.2)
T3: 8 (0.8, 5.9)
T4: 9 (0.9, 6.6)
T5: 31 (3.2, 22.9)
T6: Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 (EXCEPT FOR WILDERNESS))>CONTROL VALVE BODY>INSTALLATION .
