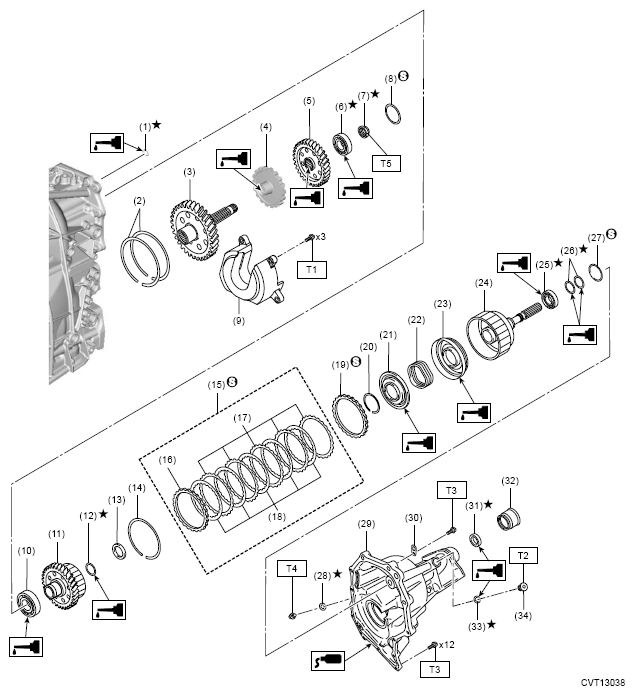

Transfer And Extension Case
| (1) | O-ring |
| (2) | Snap ring |
| (3) | Reduction driven gear |
| (4) | Parking gear |
| (5) | Transfer drive gear |
| (6) | Ball bearing |
| (7) | Lock nut |
| (8) | Transfer drive gear shim |
| (9) | Oil spacer |
| (10) | Ball bearing |
| (11) | Transfer driven gear |
| (12) | Seal ring |
| (13) | Thrust bearing |
| (14) | Snap ring |
| (15) | Transfer clutch plate set |
| (16) | Pressure plate |
| (17) | Driven plate |
| (18) | Drive plate |
| (19) | Pressure plate |
| (20) | Snap ring |
| (21) | Transfer clutch piston seal |
| (22) | Return spring |
| (23) | Transfer clutch piston |
| (24) | Rear drive shaft |
| (25) | Ball bearing |
| (26) | Seal ring |
| (27) | Transfer driven gear shim |
| (28) | Gasket |
| (29) | Extension case |
| (30) | Transmission hanger |
| (31) | Extension case oil seal |
| (32) | Dust cover |
| (33) | O-ring |
| (34) | Test plug (transfer clutch pressure) |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 17 (1.7, 12.5)
T2: 22 (2.2, 16.2)
T3: 25 (2.5, 18.4)
T4: 35 (3.6, 25.8)
T5: 95 (9.7, 70.1)
