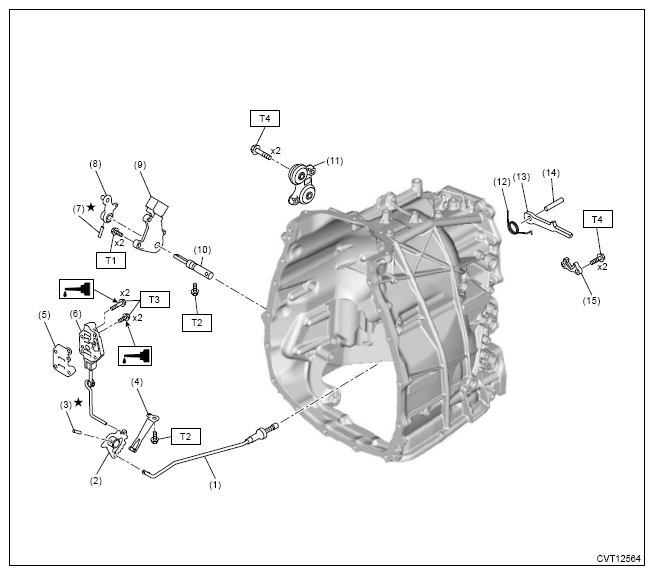

Transmission Control Device
| (1) | Parking rod |
| (2) | Manual plate |
| (3) | Spring pin |
| (4) | Detent spring |
| (5) | Separator plate |
| (6) | Manual valve |
| (7) | Spring pin |
| (8) | Shifter arm |
| (9) | Inhibitor switch |
| (10) | Shifter arm shaft |
| (11) | Cable plate |
| (12) | Return spring |
| (13) | Parking pawl |
| (14) | Shaft |
| (15) | Parking support |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 5 (0.5, 3.7)
T2: 7 (0.7, 5.2)
T3: 9 (0.9, 6.6)
T4: 25 (2.5, 18.4)
