Sedan Model

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Lift up the vehicle.
  3. Remove the clips, and turn over the mud guard front.
    G13622815Courtesy of SUBARU OF AMERICA, INC.

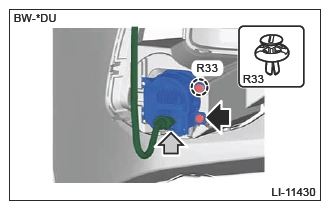

  4. Remove the fog light assembly front.
    1. Disconnect the connector.
    2. Remove the bolt and clip.
    3. Remove the fog light assembly front from the guide.
G16385936Courtesy of SUBARU OF AMERICA, INC.
