Except For Wilderness Model

  1. Rotate in the direction of arrow shown in the figure to remove the bulb socket.

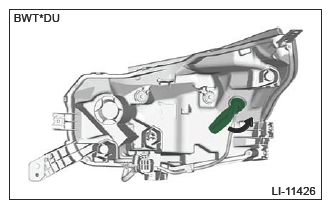

    • RH side
    G16385926Courtesy of SUBARU OF AMERICA, INC.

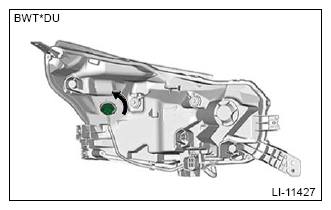

    • LH side
    G16385927Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the turn signal light bulb.
