Inrush Current Reduction Relay: Removal
WARNING: This page is about a different variant/trim than selected.
- Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
- Remove the starter. Ref. to STARTING/CHARGING SYSTEMS (H4DOTC)>STARTER>REMOVAL .
- Remove the adapter harness and cable stay.
- Remove the motor cable.
- Remove the ICR relay.

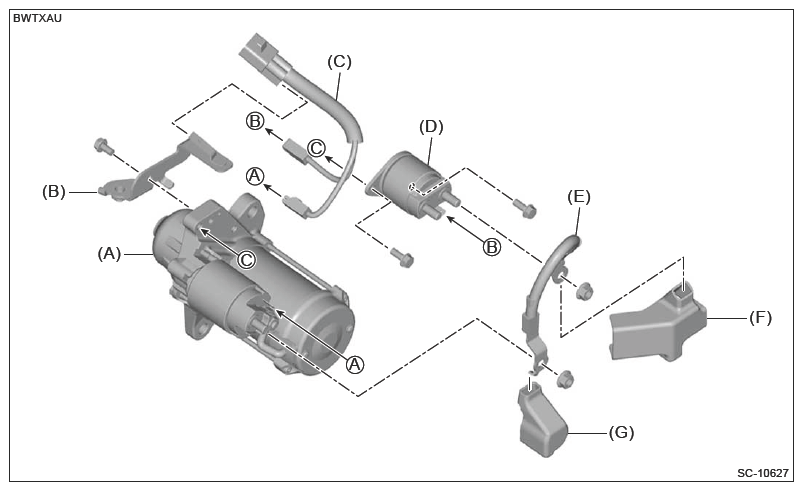

| (A) | Starter |
| (B) | Cable stay |
| (C) | Adapter harness |
| (D) | ICR relay |
| (E) | Motor cable |
| (G) | Cap |
| (F) | Cap |
