Converter Case: Disassembly

Remove the drain plug (A) using TORX® bit T70.
Remove the overflow plug (B).

Courtesy of SUBARU OF AMERICA, INC.
Remove the line pressure sensor and O-ring.

Courtesy of SUBARU OF AMERICA, INC.

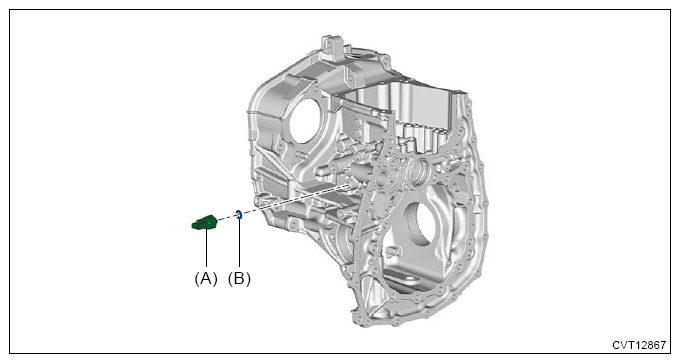

(A) Line pressure sensor

(B) O-ring

Remove the plugs and oil guide.

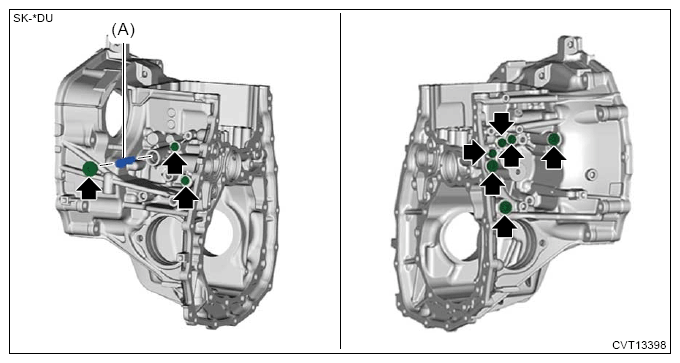

For outer hexagonal test plug (transfer clutch pressure)

G16342466

Courtesy of SUBARU OF AMERICA, INC.

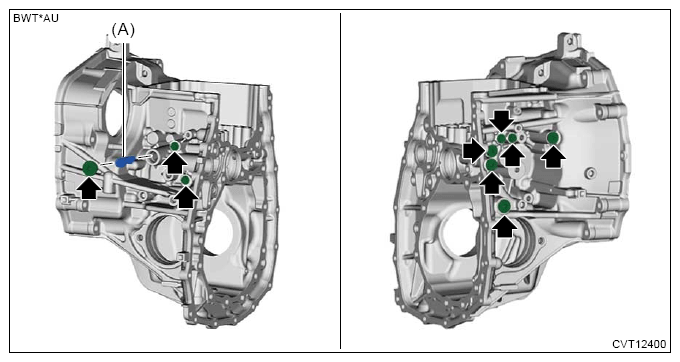

For inner hexagonal test plug (transfer clutch pressure)

G16342467

Courtesy of SUBARU OF AMERICA, INC.

(A)

Oil guide

Remove the stud bolt.

G13592394

Courtesy of SUBARU OF AMERICA, INC.
