Transmission Harness: Installation

Connect the transmission harness to the control valve body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>CONTROL VALVE BODY>INSTALLATION .

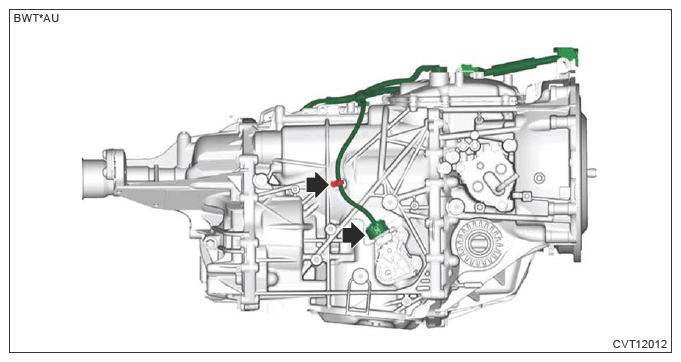

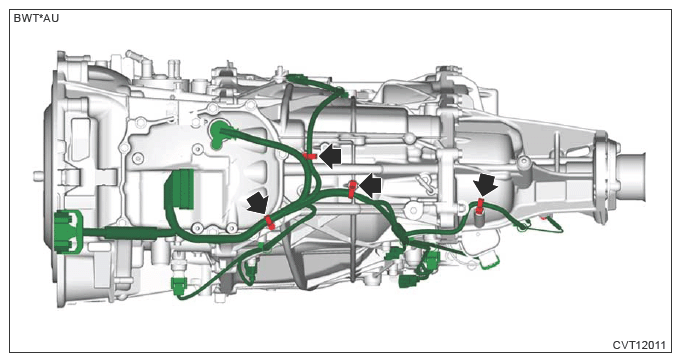

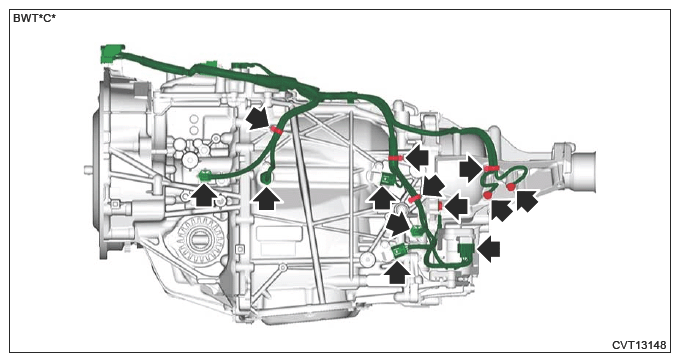

Connect the connector and ground terminal as shown in the figure, and install the clips.

CAUTION: Pass the electric oil pump ground wire under the electric oil pump signal line.

Courtesy of SUBARU OF AMERICA, INC.

(A)	Electric oil pump signal line
(B)	Electric oil pump ground wire

NOTE: Let the ground terminal come into contact with the stopper (a) and tighten the bolt.

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

13 N.m (1.3 kgf-m, 9.6 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

Install the air breather hose. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>AIR BREATHER HOSE>INSTALLATION .
