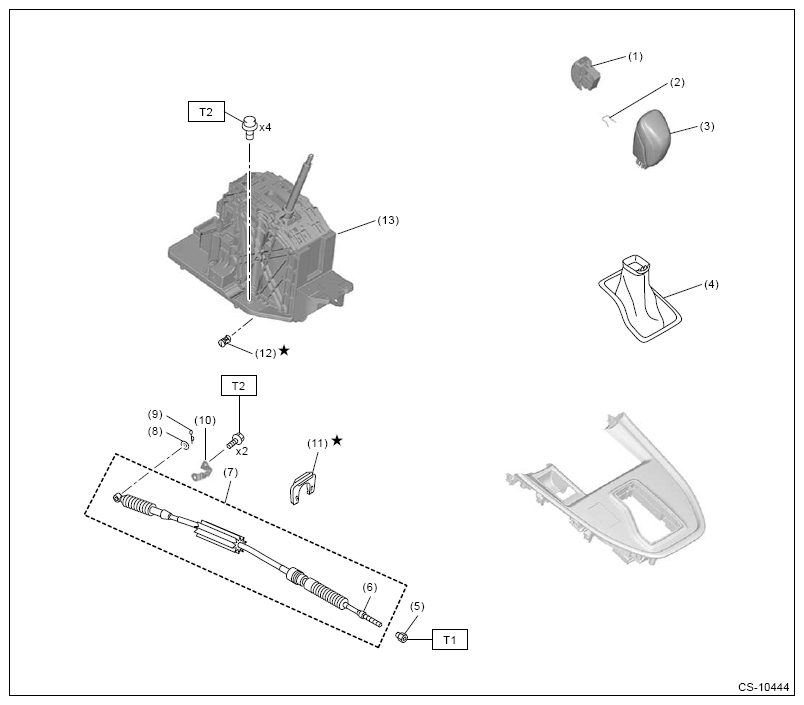

Select Lever And Select Cable
 Courtesy of SUBARU OF AMERICA, INC.
|
| (1) |
Grip button |
| (2) |
Clamp |
| (3) |
Grip |
| (4) |
Boot |
| (5) |
Adjusting nut (rear) |
| (6) |
Adjusting nut (front) |
| (7) |
Select cable |
| (8) |
Washer |
| (9) |
Snap pin |
| (10) |
Cable bracket |
| (11) |
Clamp |
| (12) |
Connector pin |
| (13) |
Select lever |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 7.5 (0.8, 5.5)
T2: 18 (1.8, 13.3)
