G Sensor: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the front wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>REMOVAL .

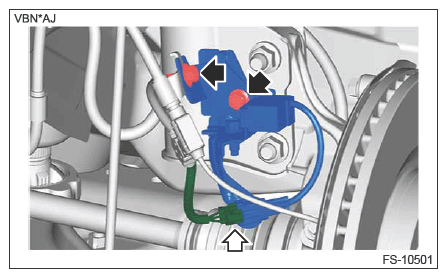

  3. Remove the harness bracket.
    1. Disconnect the connector.
    2. Remove the bolts and then remove the harness bracket together with the G sensor.
    G14601776Courtesy of SUBARU OF AMERICA, INC.

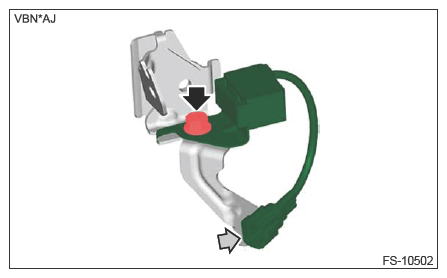

  4. Remove the G sensor.
    1. Remove the connector clip.
    2. Remove the bolts, and then remove the G sensor.
G14601777Courtesy of SUBARU OF AMERICA, INC.
