Body Control System

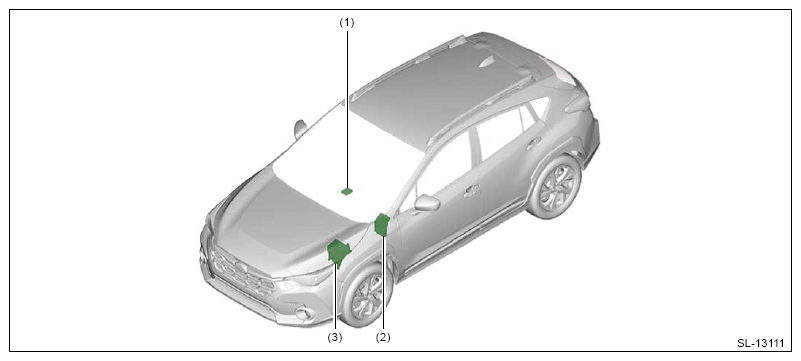

G16762332Courtesy of SUBARU OF AMERICA, INC.
(1) Central gateway Control Module
(2) Body integrated unit
(3) Front relay control module (in the main fuse box)
