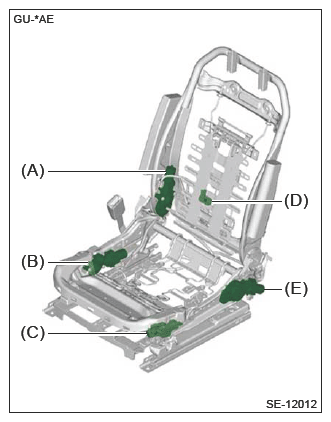

Motor Layout

G16762213Courtesy of SUBARU OF AMERICA, INC.
(A) Reclining motor
(B) Tilt motor
(C) Slide motor
(D) Lumbar motor
(E) Lifter motor
