Components With Torque Specifications

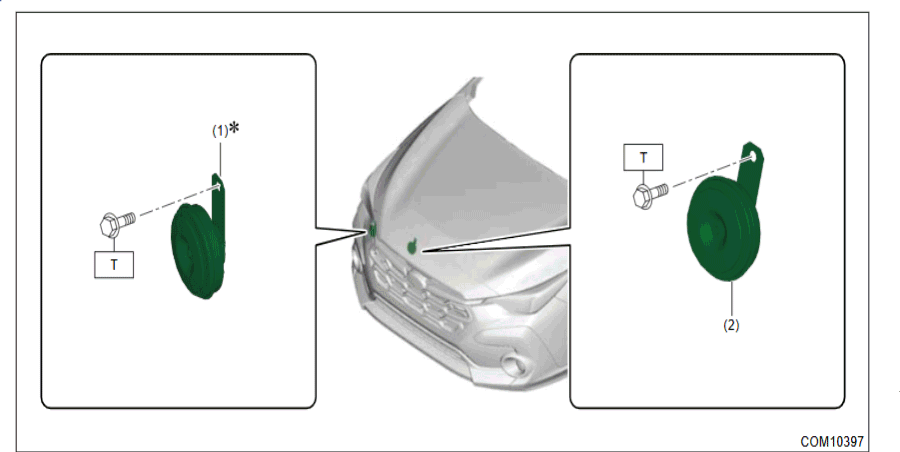

Fig 1: Horn Components Location
G00659580Courtesy of SUBARU OF AMERICA, INC.
(1) Horn ASSY Lo
(2) Horn ASSY Hi

Tightening torque: N.m (kgf-m, ft-lb)

T: 18 (1.8, 13.3)

*: Equipment varies depending on the specifications.
