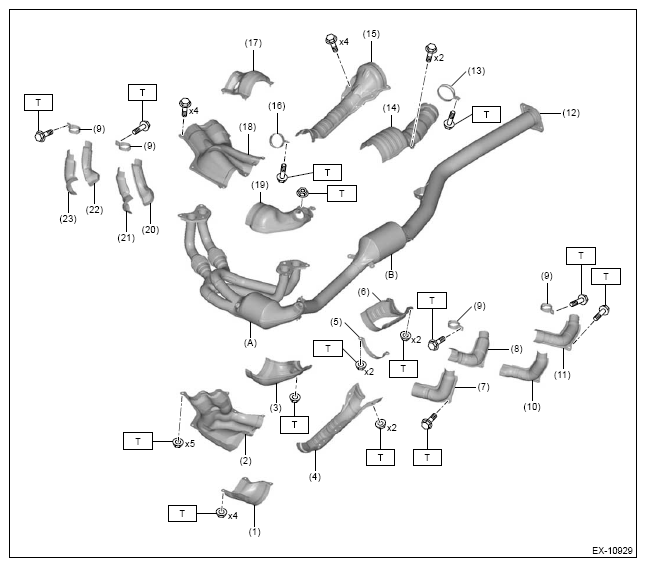

Front Exhaust Pipe 2
| (A) | Front catalytic converter |
| (1) | Exhaust cover |
| (2) | Exhaust cover |
| (3) | Exhaust cover |
| (4) | Exhaust cover |
| (5) | Clamp |
| (6) | Exhaust cover |
| (7) | Exhaust cover |
| (8) | Exhaust cover |
| (9) | Band |
| (10) | Exhaust cover |
| (11) | Exhaust cover |
| (12) | Front exhaust pipe |
| (B) | Rear catalytic converter |
| (13) | Band |
| (14) | Exhaust cover |
| (15) | Exhaust cover |
| (16) | Band |
| (17) | Exhaust cover |
| (18) | Exhaust cover |
| (19) | Exhaust cover |
| (20) | Exhaust cover |
| (21) | Exhaust cover |
| (22) | Exhaust cover |
| (23) | Exhaust cover |
Tightening torque: N.m (kgf-m, ft-lb)
T: 14 (1.4, 10.3)
