Air Intake Boot: Removal

NOTE: Components: Ref. to INTAKE (INDUCTION) (H4DO)>GENERAL DESCRIPTION>COMPONENT .
  1. Remove the air intake boot.
    1. Remove the clip.
    2. Loosen the clamp.
      G00659598Courtesy of SUBARU OF AMERICA, INC.

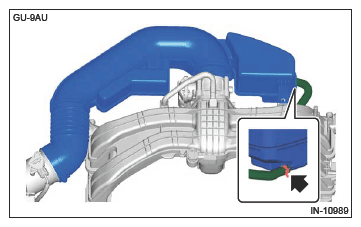

    3. Disconnect the PCV hose and remove the air intake boot.
      G16760951Courtesy of SUBARU OF AMERICA, INC.
