PCV System 2

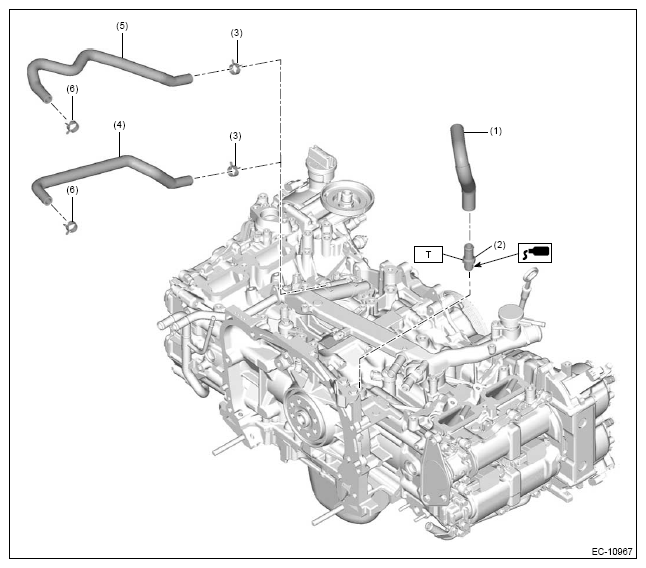

Fig 1: PCV System 2 Components Location
G16760817Courtesy of SUBARU OF AMERICA, INC.
(1) PCV hose No. 1
(2) PCV VALVE
(3) Clip
(4) PCV hose No. 2 (2.0 L model)
(5) PCV hose No. 2 (2.5 L model)
(6) Clip

Tightening torque: Nm (kgf-m, ft-lb)

T: 23 (2.3, 17.0)
