Steering Gearbox

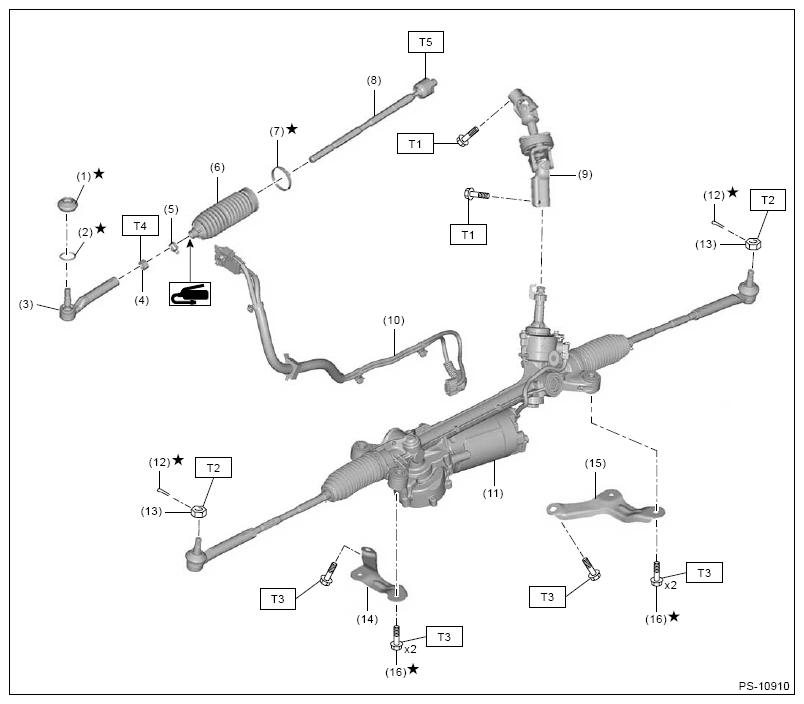

G16763774

Courtesy of SUBARU OF AMERICA, INC.

(1)	Dust boots
(2)	Clip boot tie-rod end
(3)	Tie-rod end
(4)	Lock nut
(5)	Clip boot tie-rod
(6)	Boot steering gearbox
(7)	Band boot
(8)	Tie-rod
(9)	Universal joint ASSY steering
(10)	Power steering harness
(11)	Steering gearbox ASSY
(12)	Cotter pin
(13)	Castle nut
(14)	Stiffener RH
(15)	Stiffener LH
(16)	Flange bolt

Tightening torque: N.m (kgf-m, ft-lb)

T1: 24 (2.4, 17.7)

T2: 27 (2.8, 19.9)

T3: 60 (6.1, 44.3)

T4: 85 (8.7, 62.7)

T5: 125 (12.7, 92.2)
