Select Lever: Disassembly

NOTE: The select lever unit cannot be disassembled.

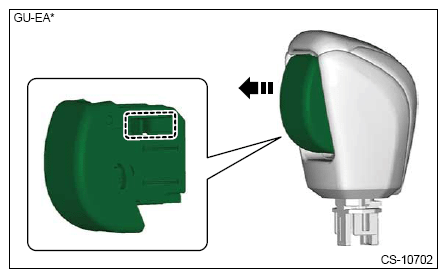

  1. Remove the grip button.
    1. Disengage the claws on the both sides.
    2. Remove the grip button.
      G16767438Courtesy of SUBARU OF AMERICA, INC.
