Rearview Camera Assembly

CAUTION: Do not drop or apply any impact to the rearview camera assembly because it is a precision equipment.

Sedan model
1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
2. Remove the trim panel trunk lid. Ref. to EXTERIOR/INTERIOR TRIM>TRUNK ROOM TRIM>REMOVAL .
3. Disconnect the connector.

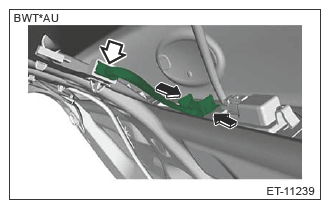

4. Disconnect the claws and then remove the rearview camera assembly.
Courtesy of SUBARU OF AMERICA, INC.
OUTBACK model/WILDERNESS model
1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
2. Remove the trim panel assembly rear gate LWR. Ref. to EXTERIOR/INTERIOR TRIM>REAR GATE TRIM>REMOVAL .
3. Remove the garnish assembly rear gate. Ref. to EXTERIOR/INTERIOR TRIM>REAR GATE GARNISH>REMOVAL .
4. Remove the nozzle rear camera washer. Ref. to WIPER AND WASHER SYSTEMS>REAR WASHER>REMOVAL>REAR CAMERA WASHER .
5. Disconnect the connector.
6. Disconnect the claws and then remove the rearview camera assembly.
Courtesy of SUBARU OF AMERICA, INC.
