Automatic Transmission/Transaxle
>>
Planetary Gear Components
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

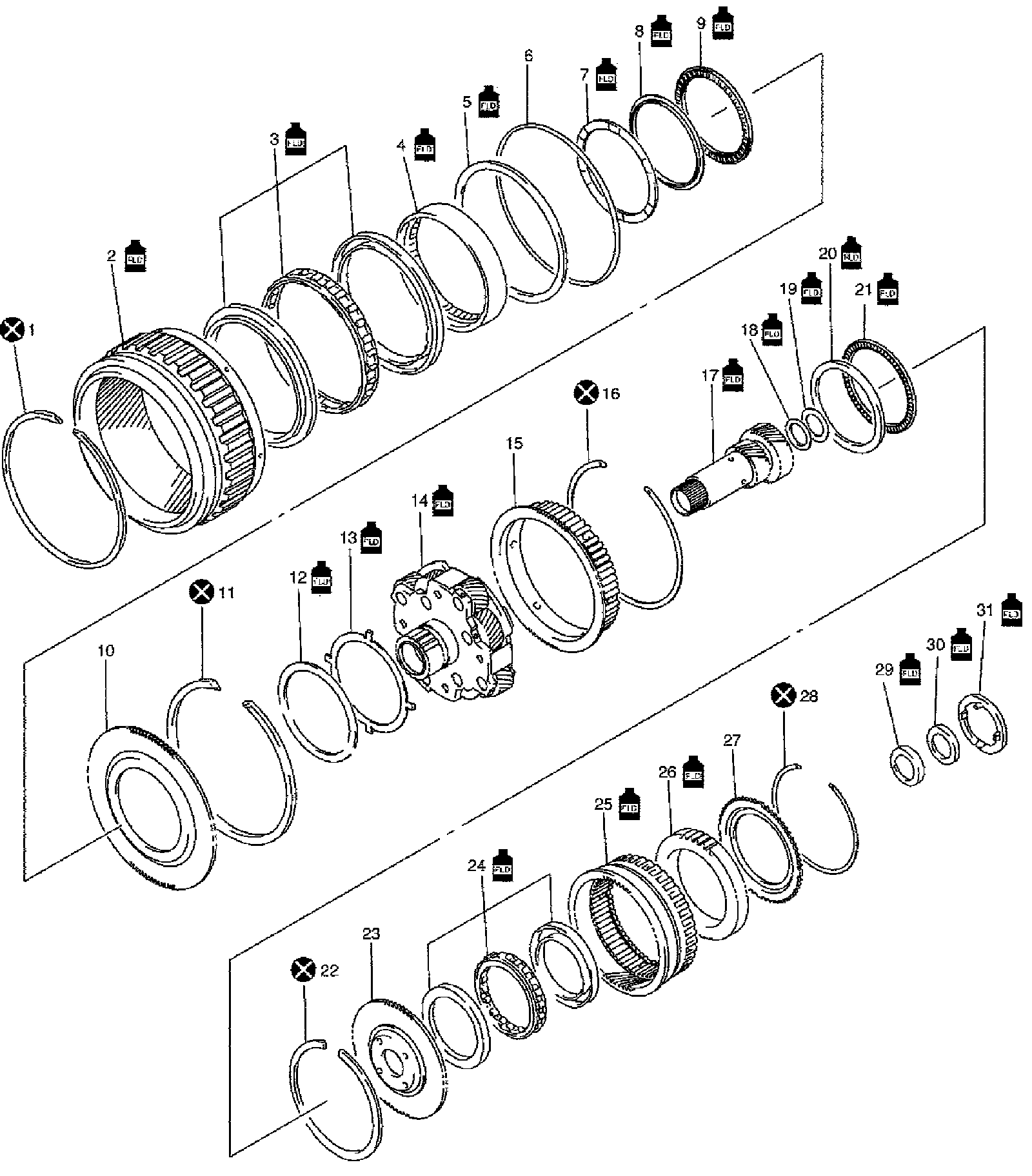

Planetary Gear Components
Part 1 Of 2:

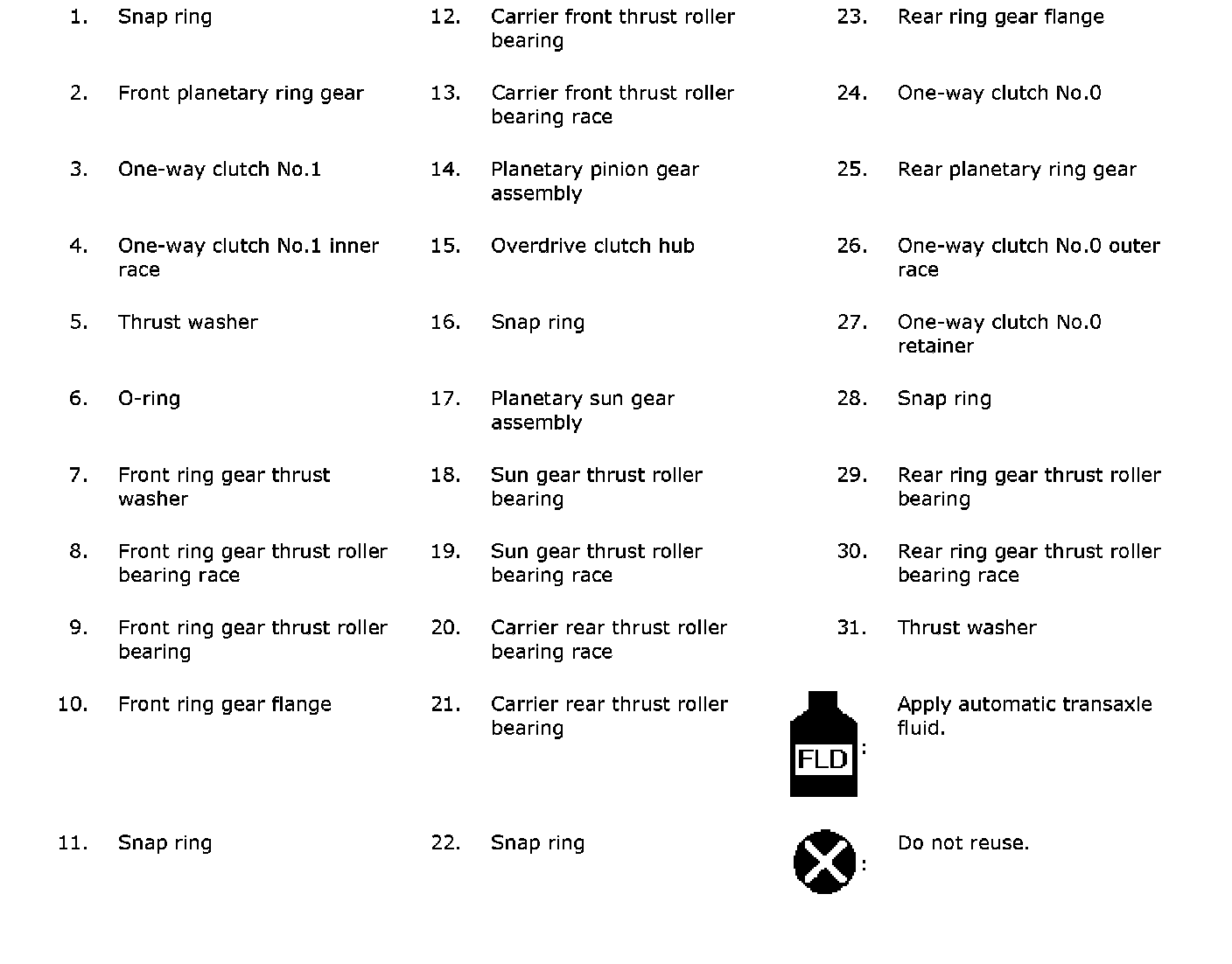

Part 2 Of 2:
Planetary Gear Components
