K Connectors

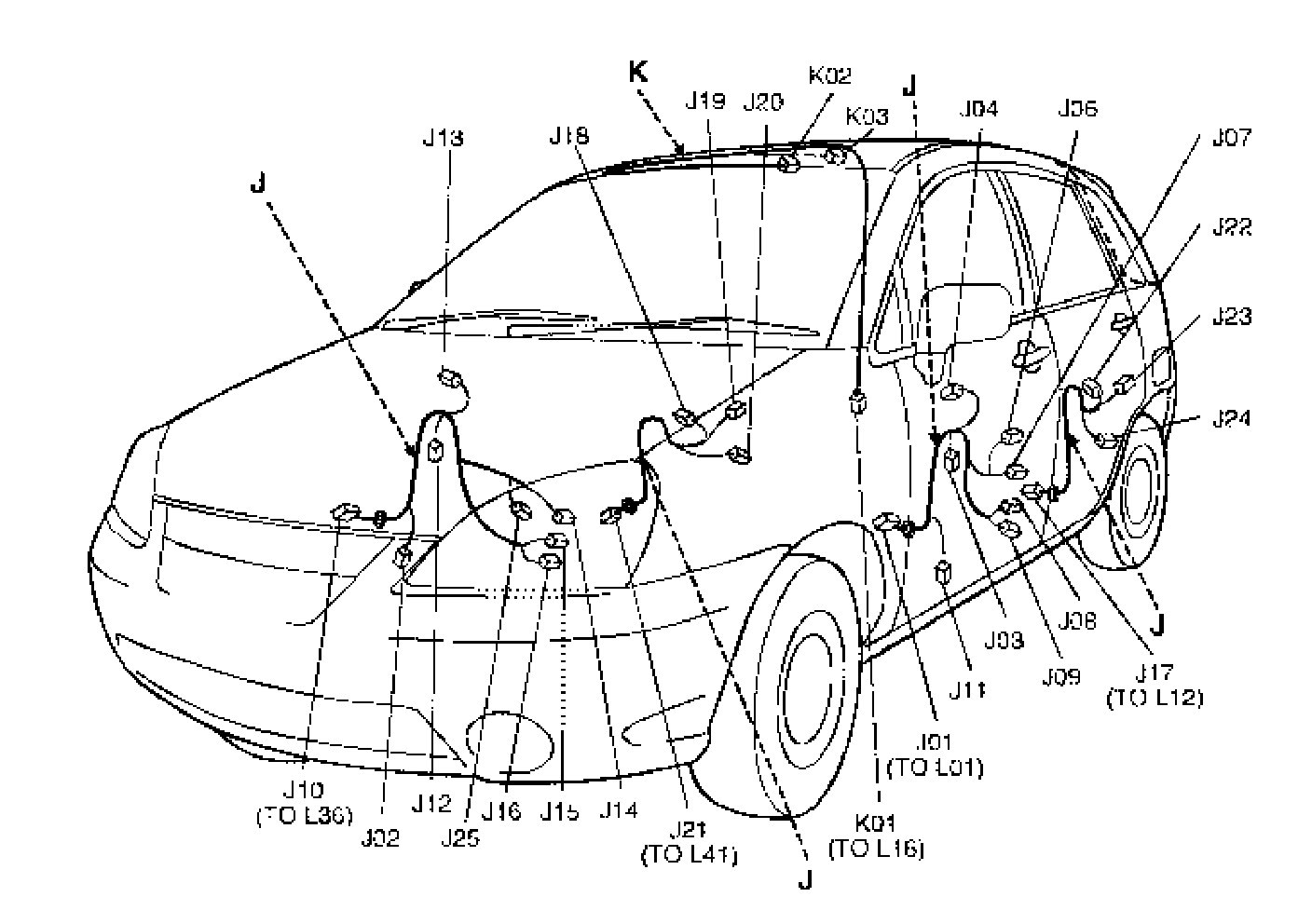

J: Front Door Wire, Rear Door Wire / K: Roof Wire View:

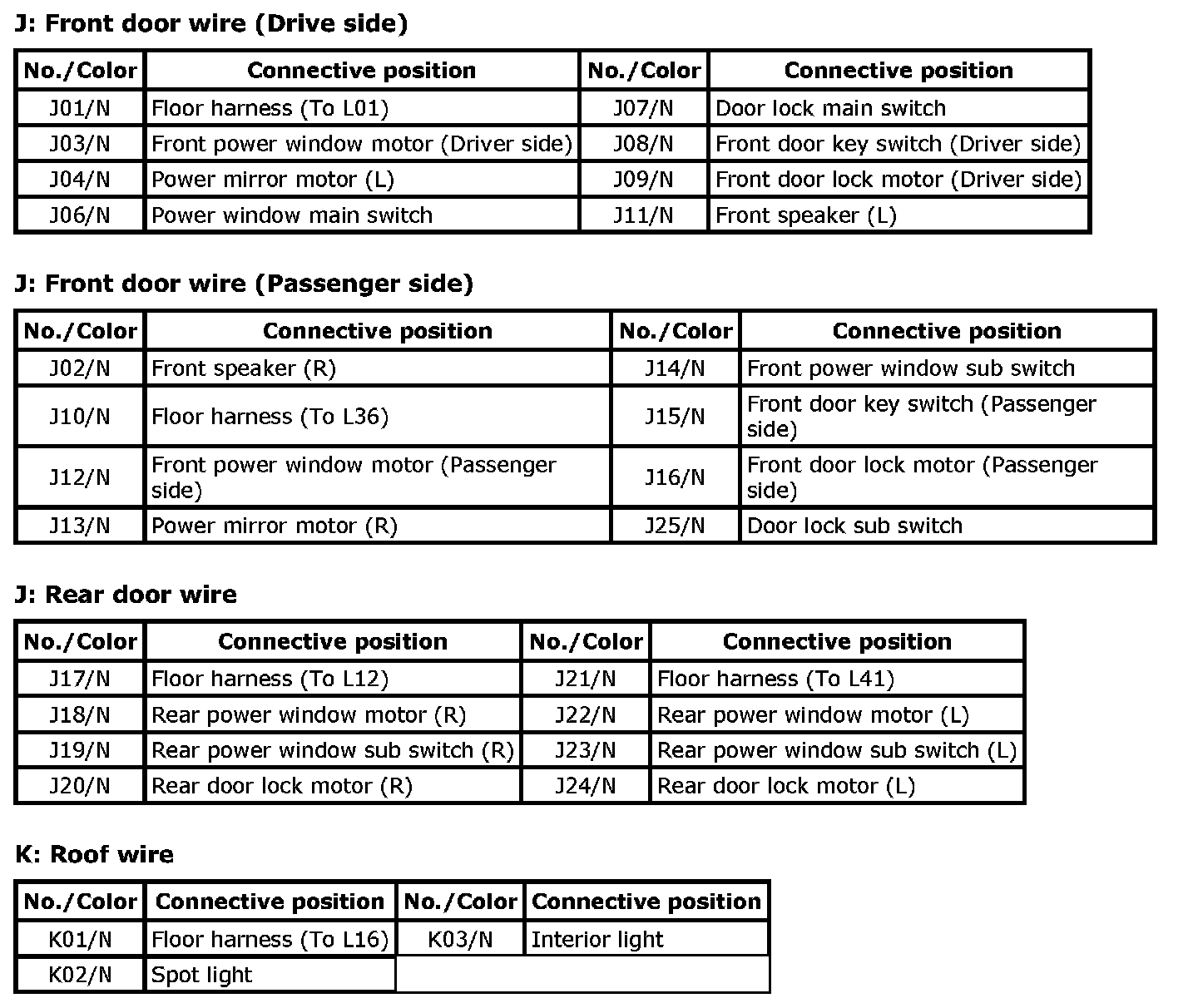

J: Front Door Wire, Rear Door Wire / K: Roof Wire Index:
