L Connectors

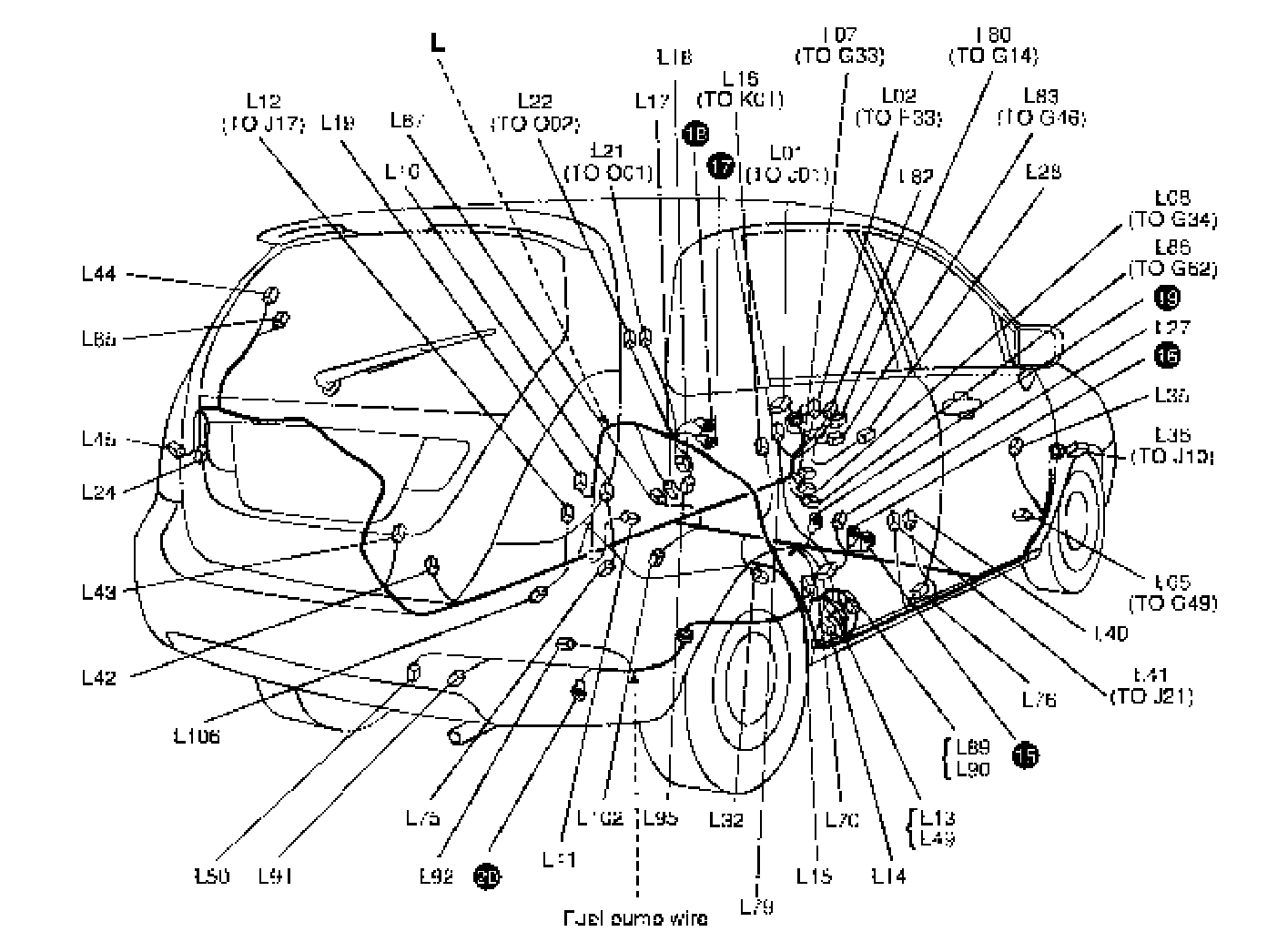

L: Floor Harness, Rear Side Marker Wire, Fuel Pump Wire, High Mounted Stop Light Wire (Wagon) View:

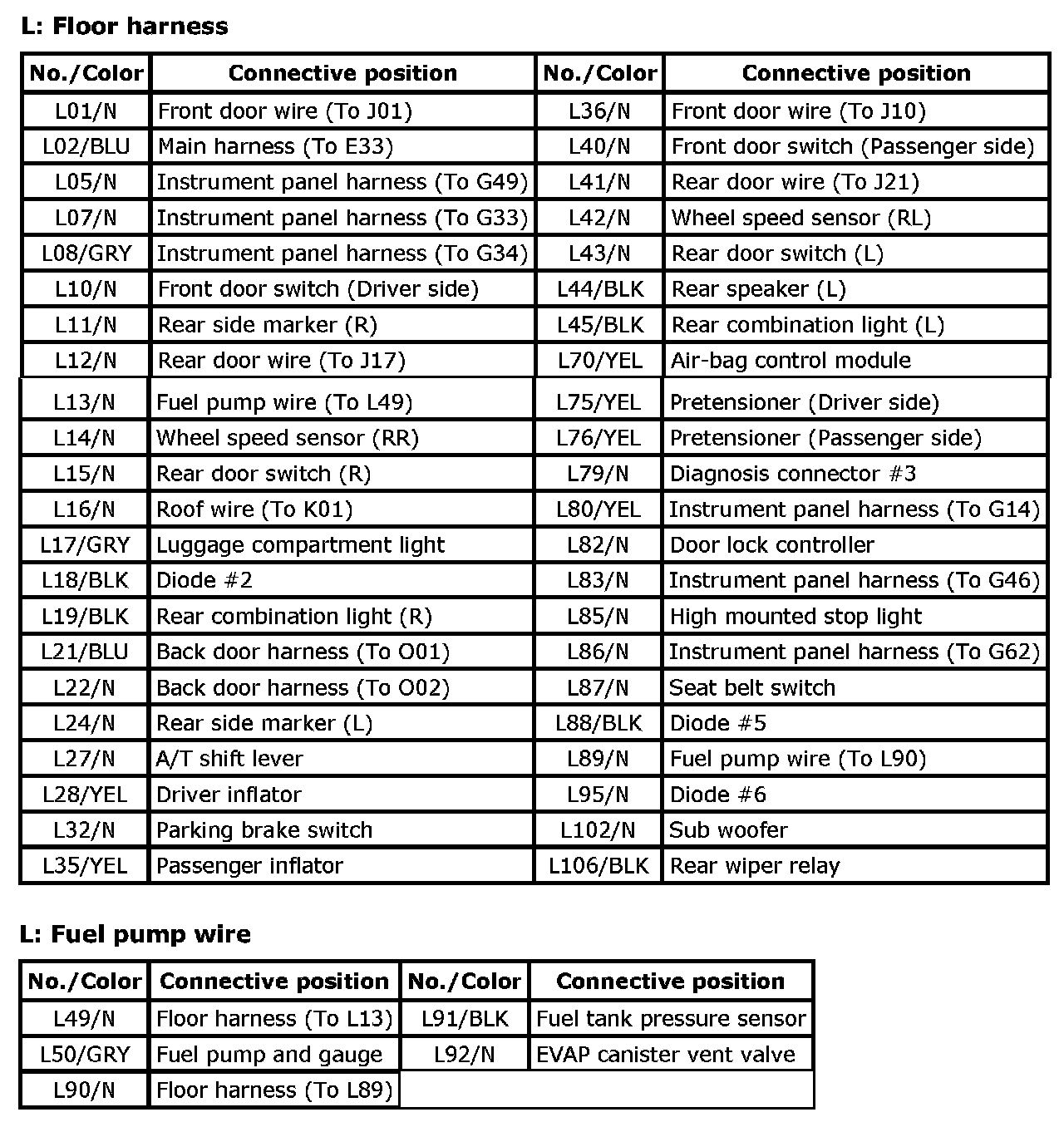

L: Floor Harness, Rear Side Marker Wire, Fuel Pump Wire, High Mounted Stop Light Wire (Wagon) Index:

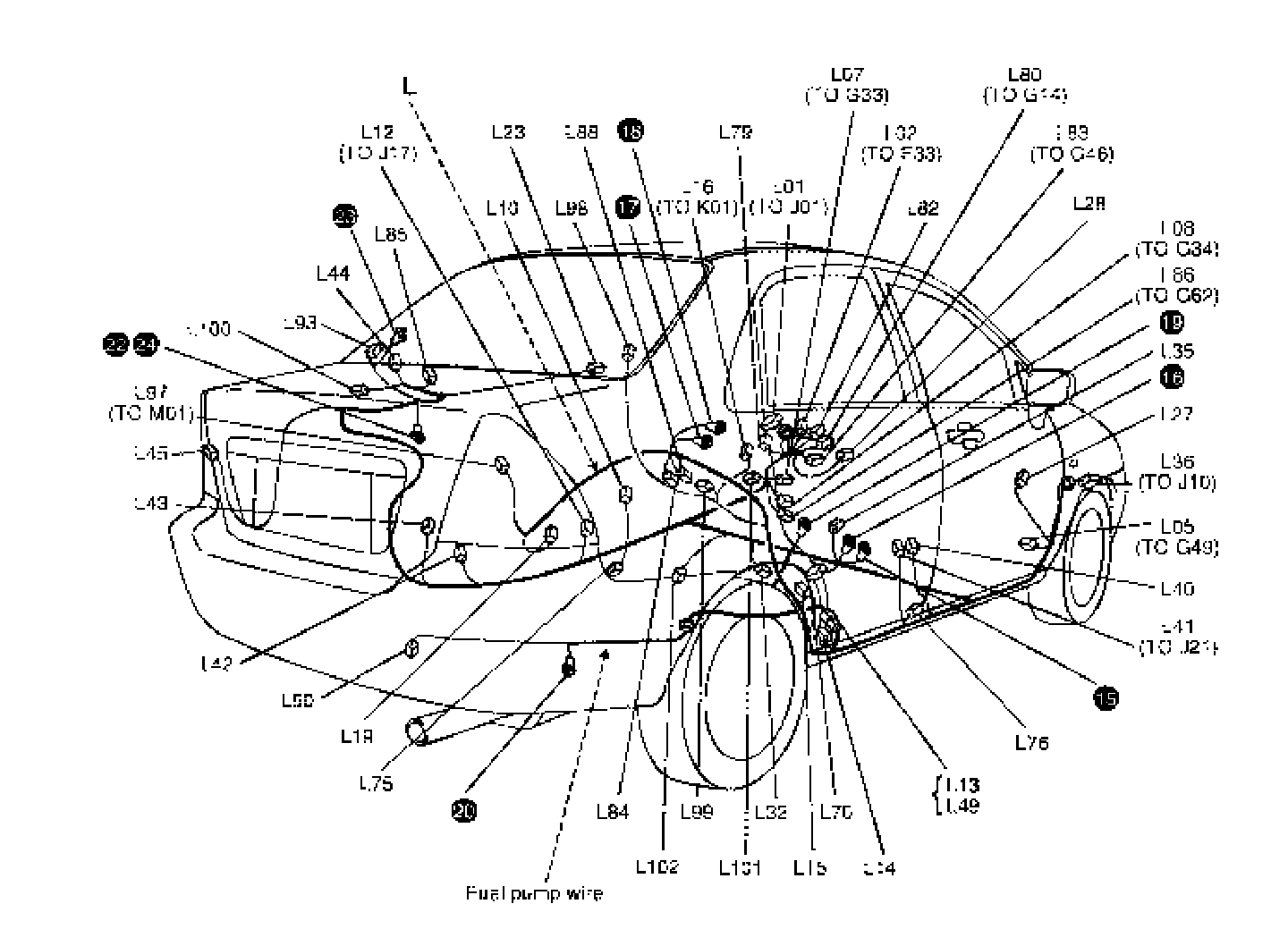

L: Floor Harness, Fuel Pump Wire (Sedan) View:

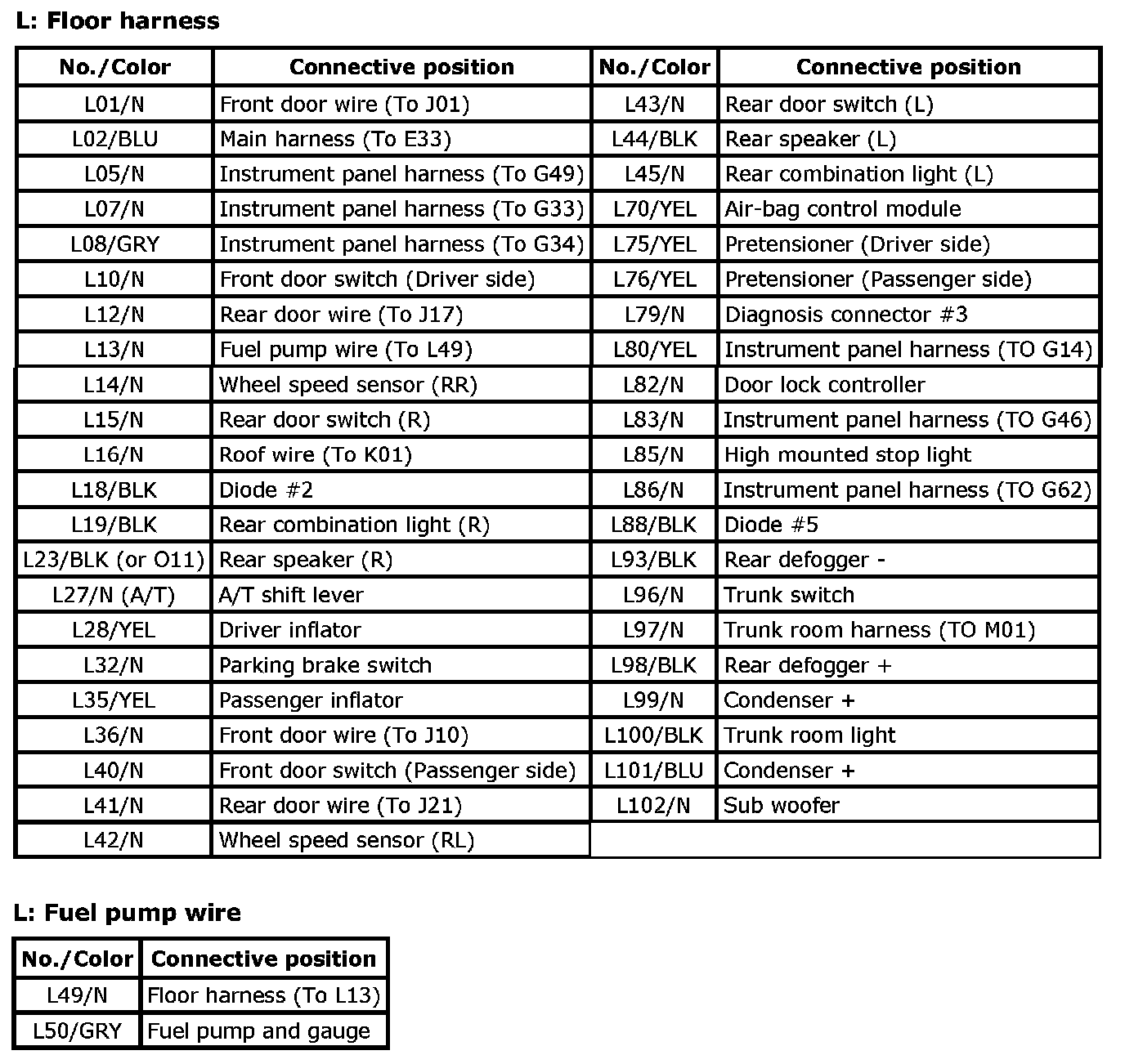

L: Floor Harness, Fuel Pump Wire (Sedan) Index:
