Electric Load Sensor: Testing and Inspection

Electric Load Signal Circuit Check

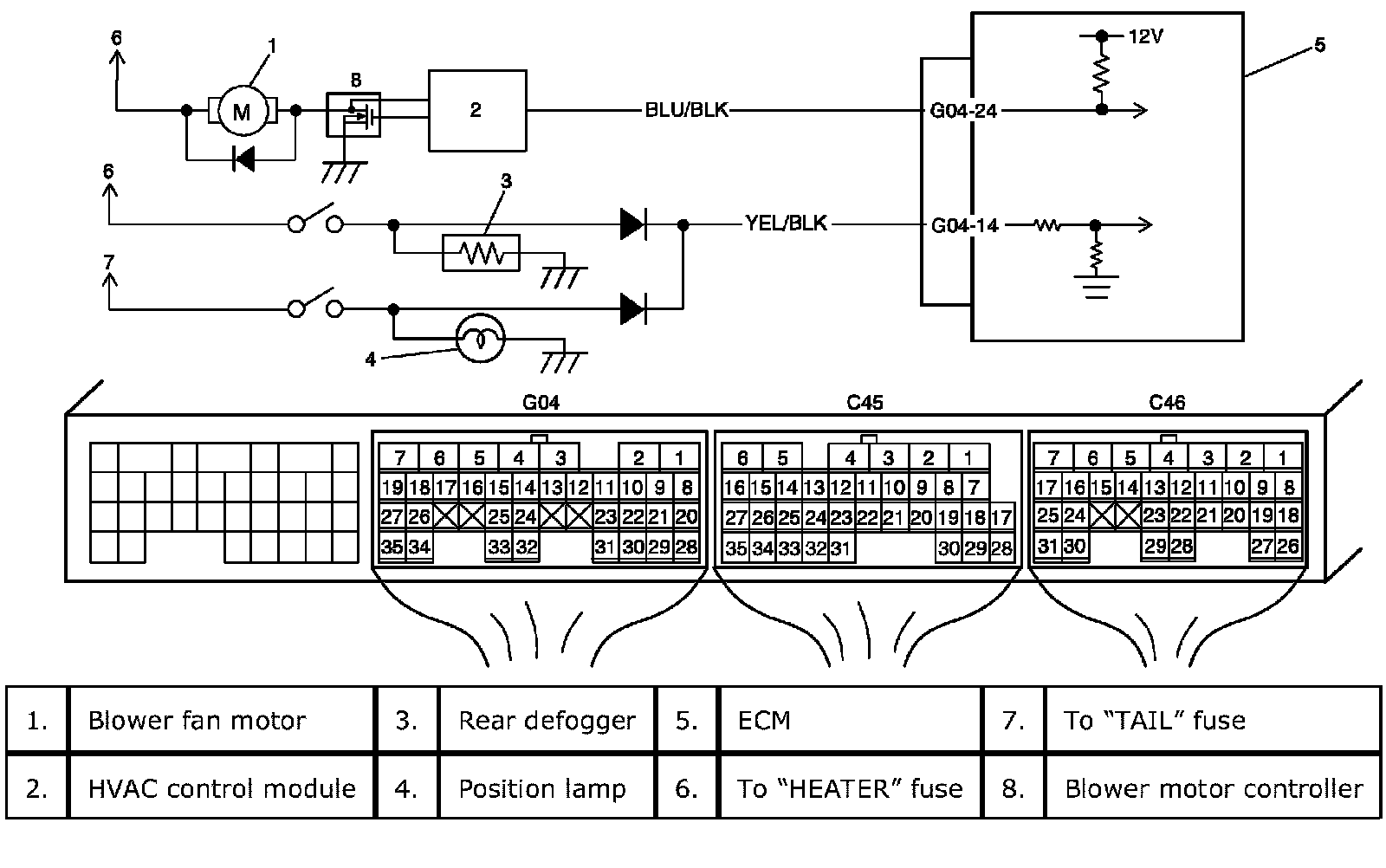

Wiring Diagram:




Wiring Diagram

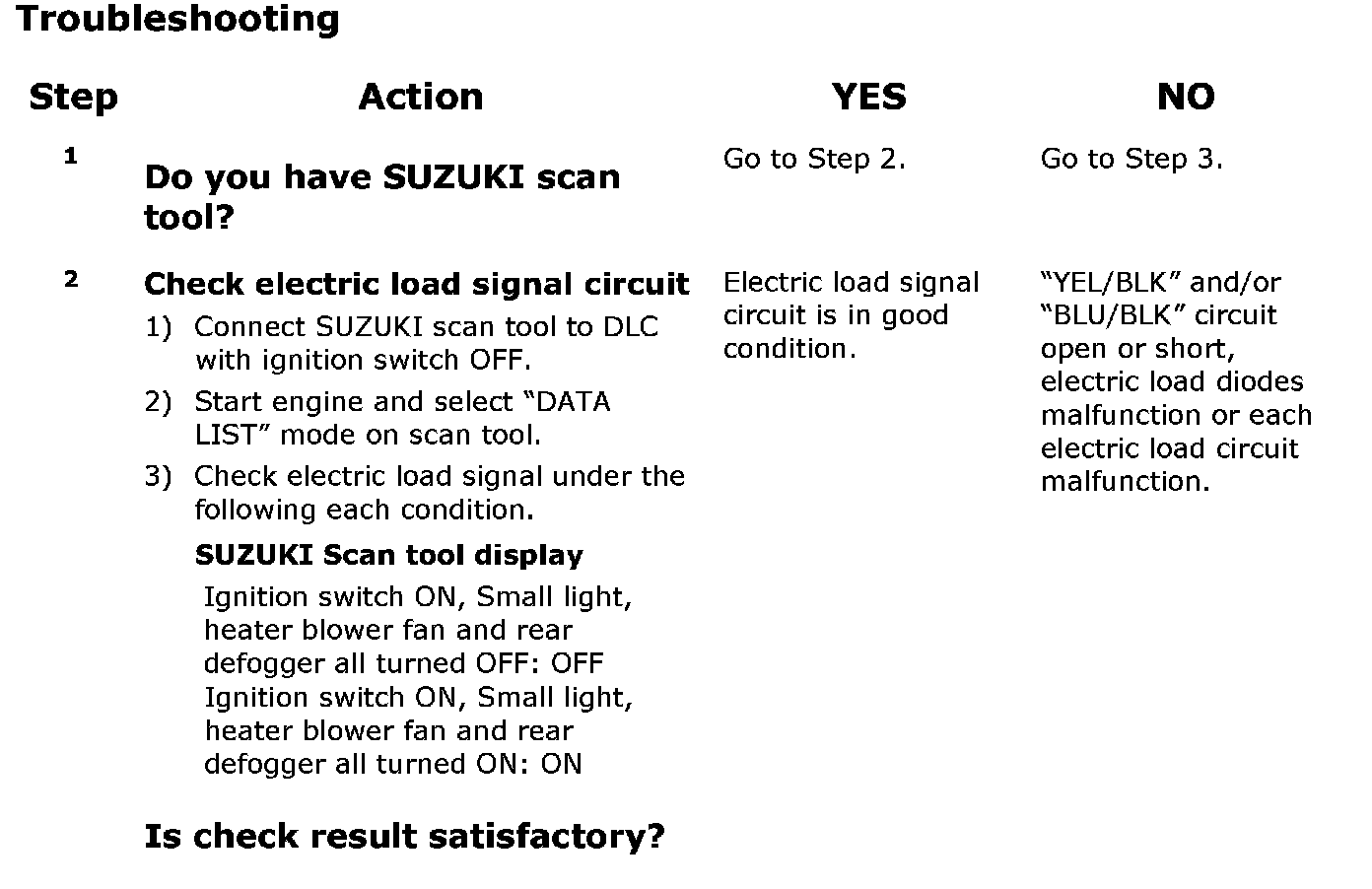

Step 1 - 2:

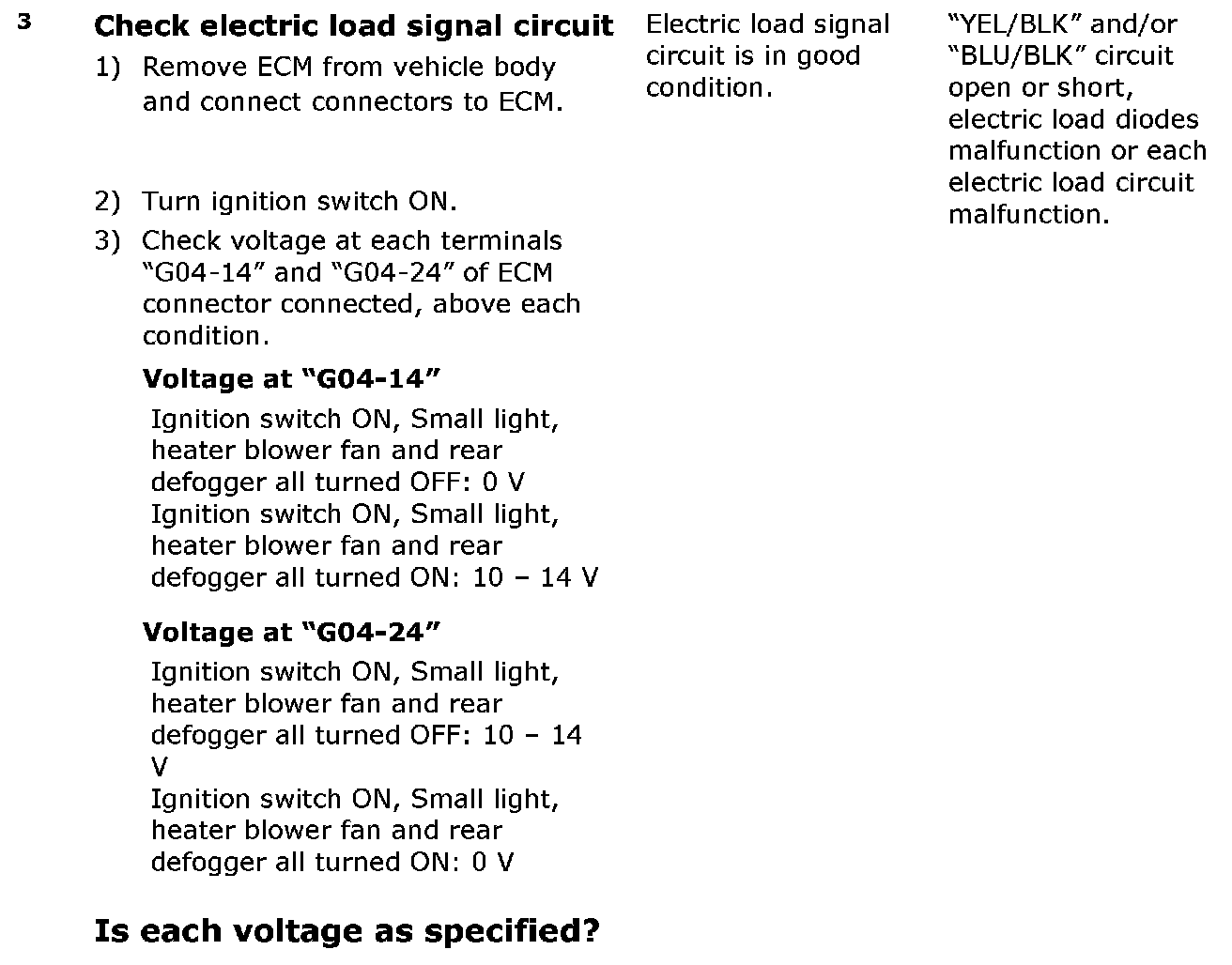

Step 3:




Troubleshooting
