Power Steering Pressure Switch: Testing and Inspection

Power Steering Pressure (PSP) Switch Signal Circuit Check

Wiring Diagram:




Wiring Diagram

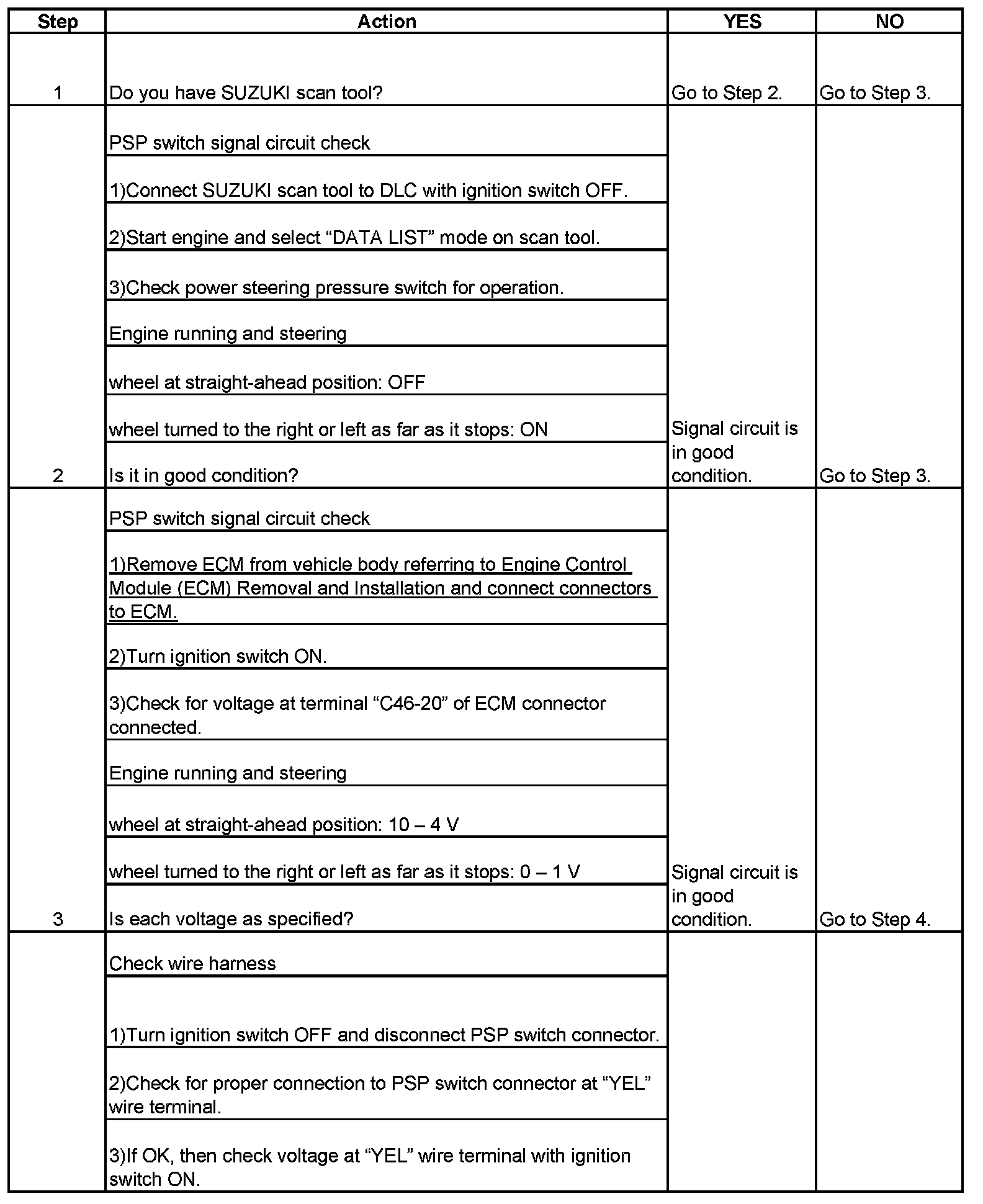

Step 1-4(Continued):

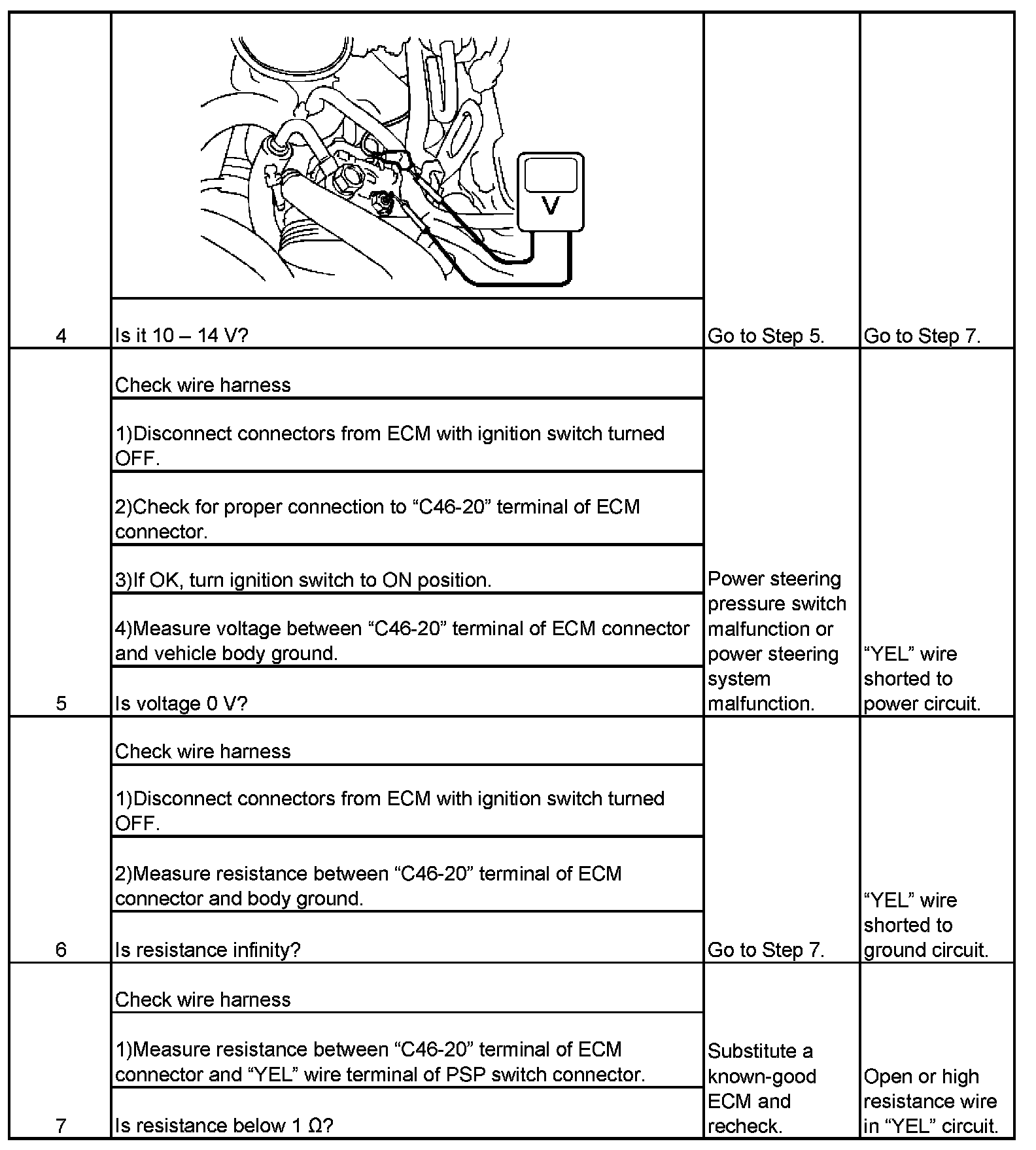

Step 4(Continued)-7:




Troubleshooting
