Engine and Emission Control Input / Output Table
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

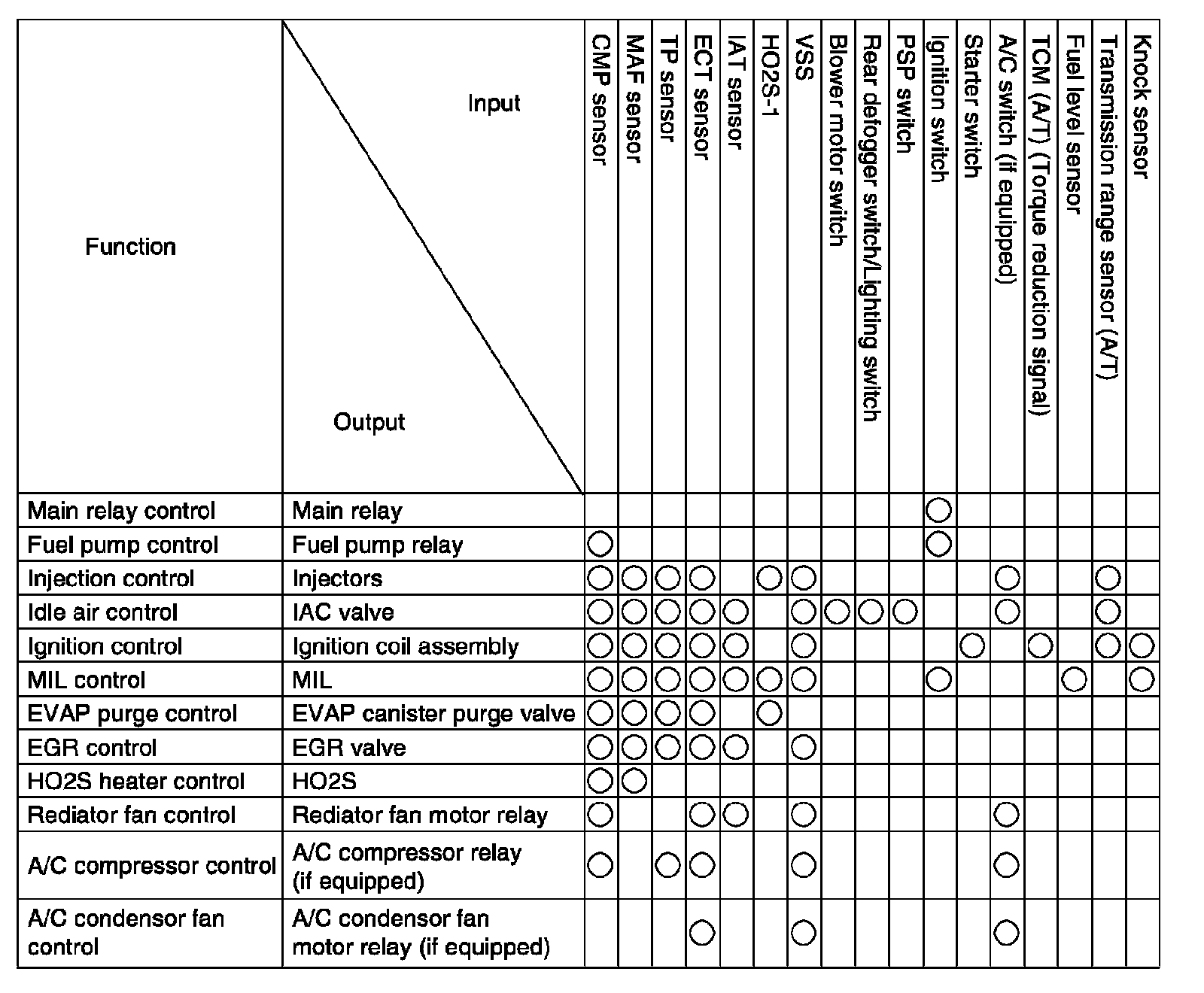

Engine and Emission Control Input / Output Table
