Cruise Control Module Power and Ground Circuits Check

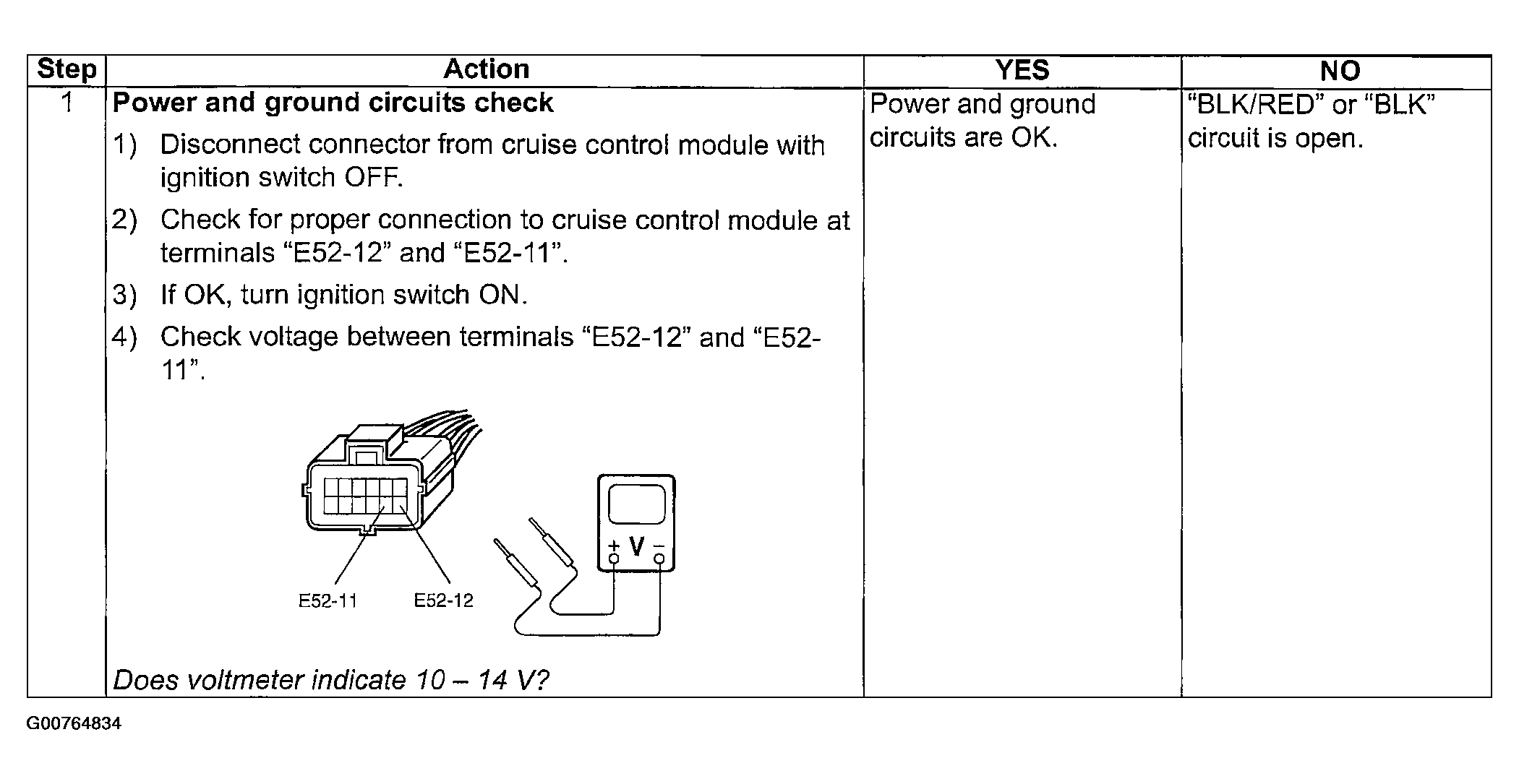

Fig 1: Cruise Control Module Power and Ground Circuits Check
Courtesy of SUZUKI OF AMERICA CORP.
