Ignition System Check: Notes

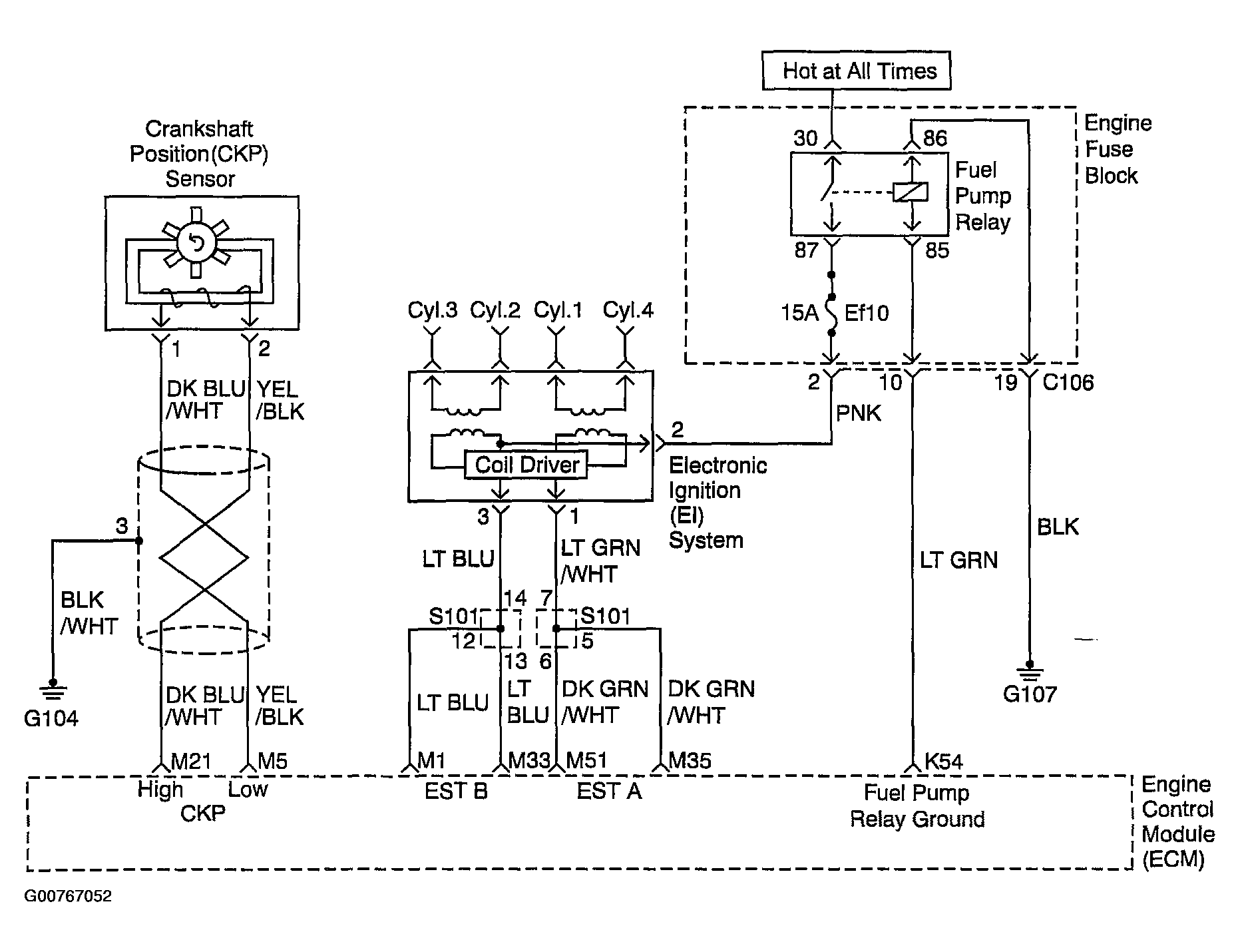

Fig 1: Ignition System Check - System Wiring Diagram

G00767052

Courtesy of SUZUKI OF AMERICA CORP.
