Comprehensive Component (Engine Input) Monitor

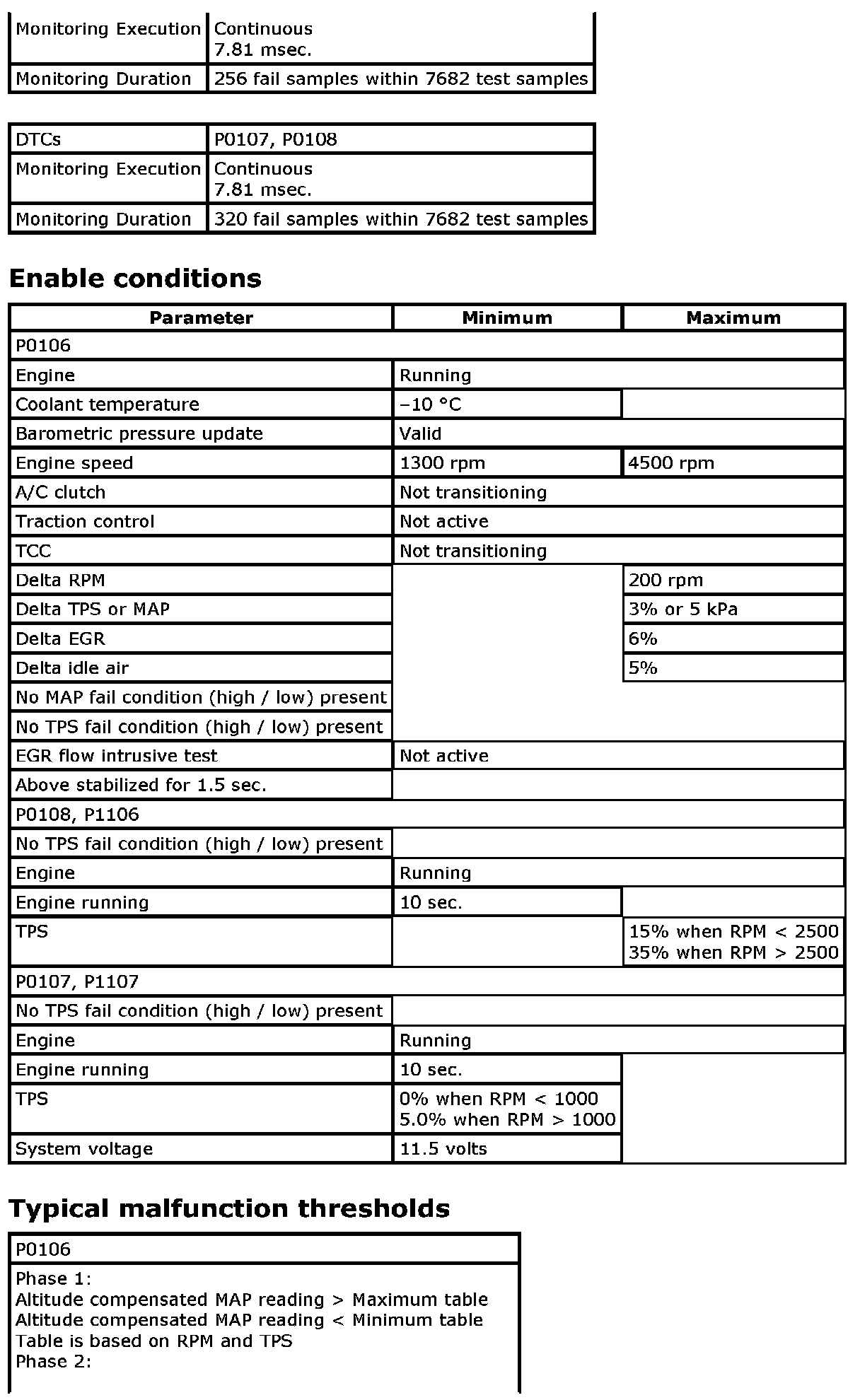

Manifold Absolute Pressure Sensor (MAP) Monitor - Part 1:

Manifold Absolute Pressure Sensor (MAP) Monitor - Part 2:

Manifold Absolute Pressure Sensor (MAP) Monitor - Part 3:

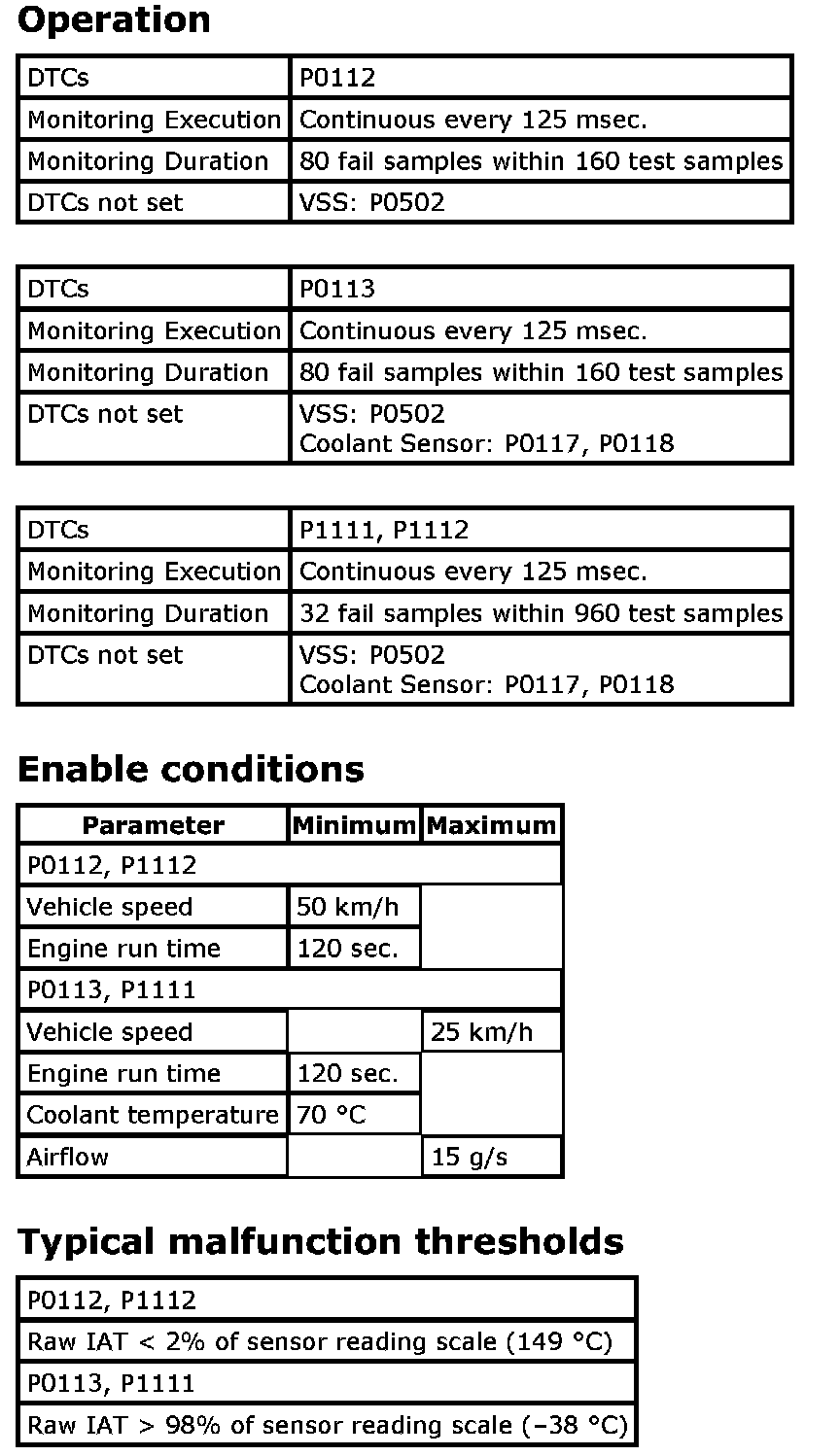

Intake Air Temperature (IAT) Monitor:

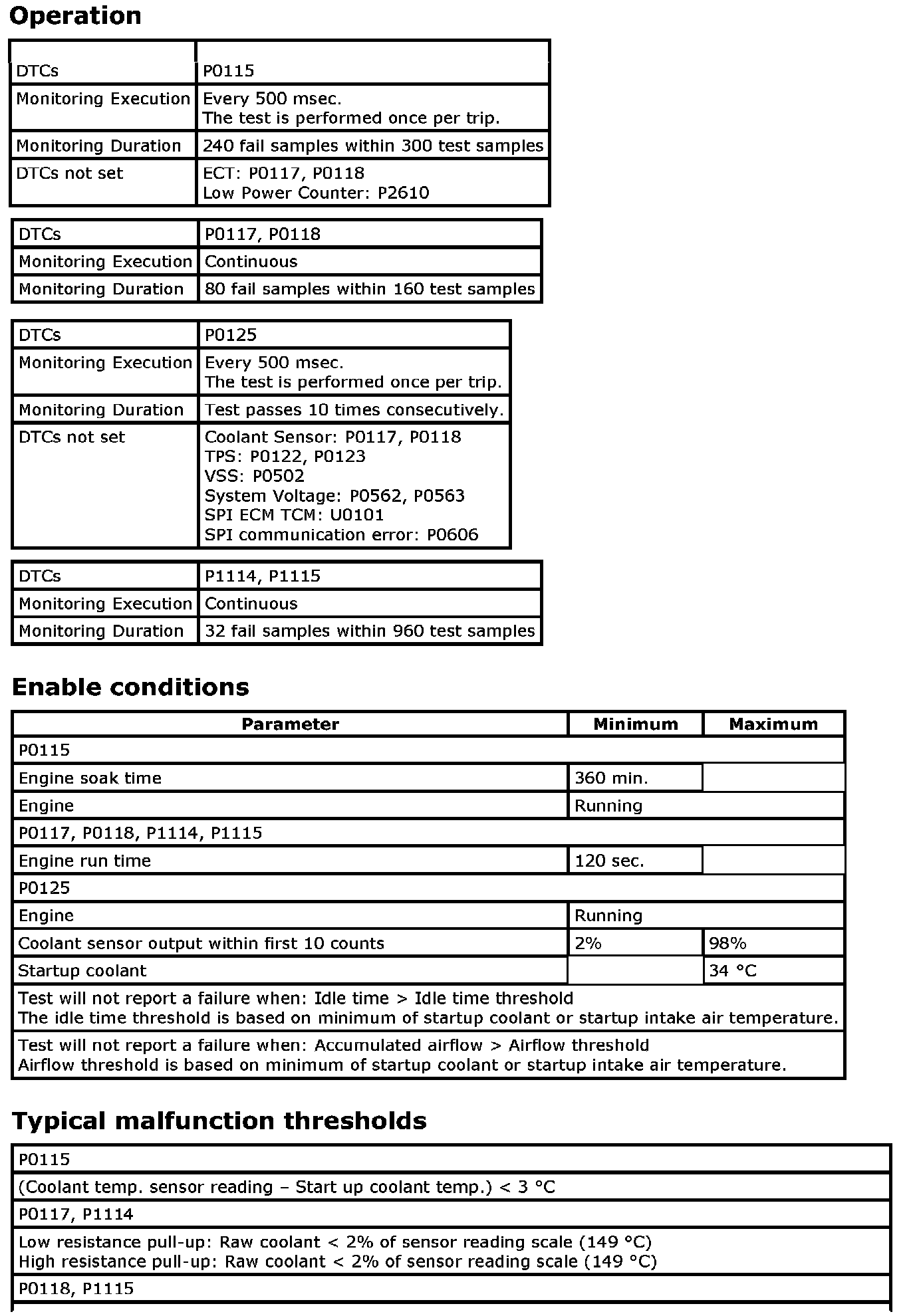

Engine Coolant Temperature (ECT) Monitor - Part 1:

Engine Coolant Temperature (ECT) Monitor - Part 2:

Throttle Position (TPS) Monitor:

Knock Sensor Circuit Malfunction Monitor - Part 1:

Knock Sensor Circuit Malfunction Monitor - Part 2:

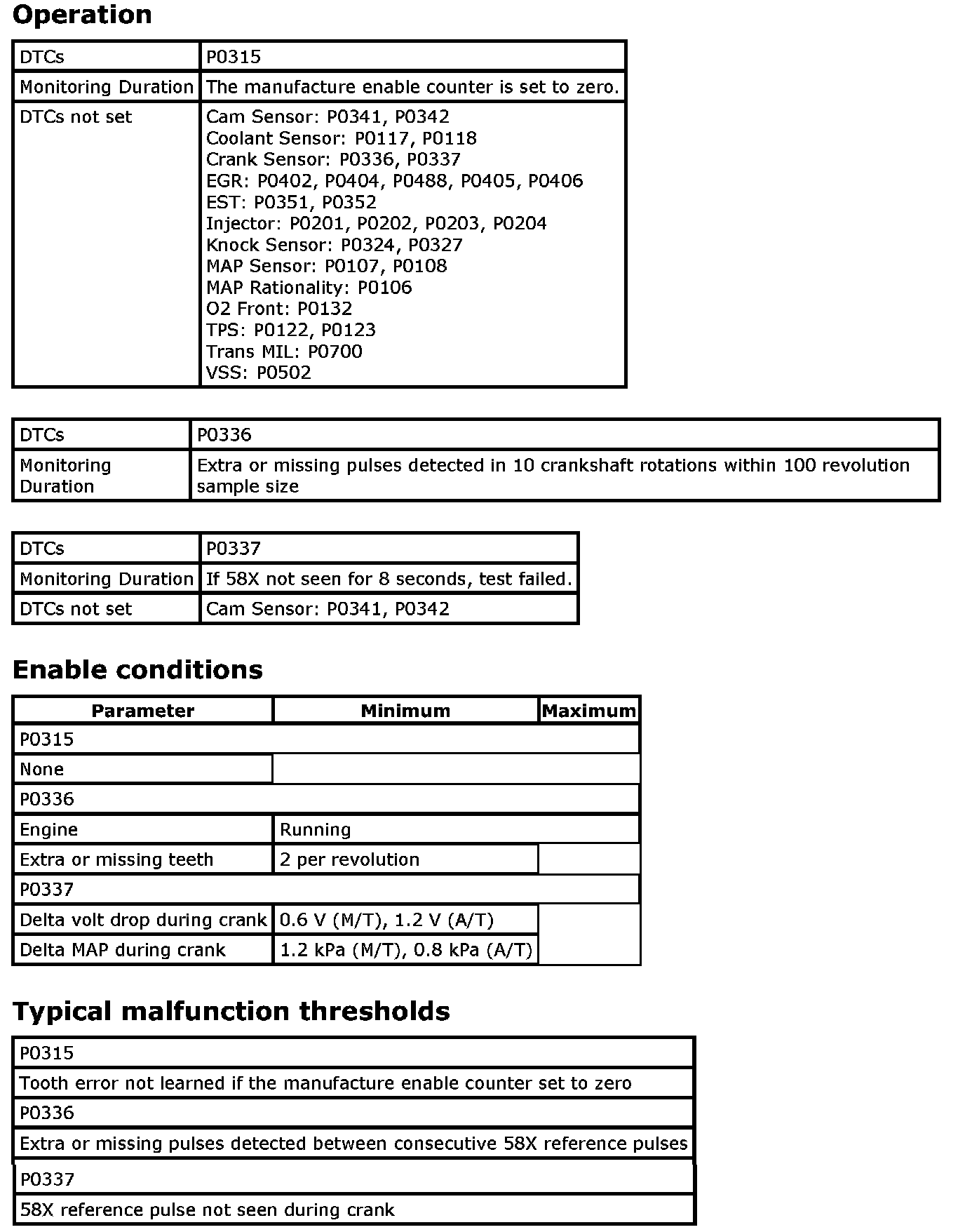

Crankshaft Position Sensor Monitor:

Camshaft Position Sensor Monitor:

Vehicle Speed Signal Monitor - Part 1:

Vehicle Speed Signal Monitor - Part 2:

IDLE Switch Signal Monitor - Part 1:

IDLE Switch Signal Monitor - Part 2:

Air Conditioning Pressure Sensor Signal Monitor:

System Voltage Monitor:

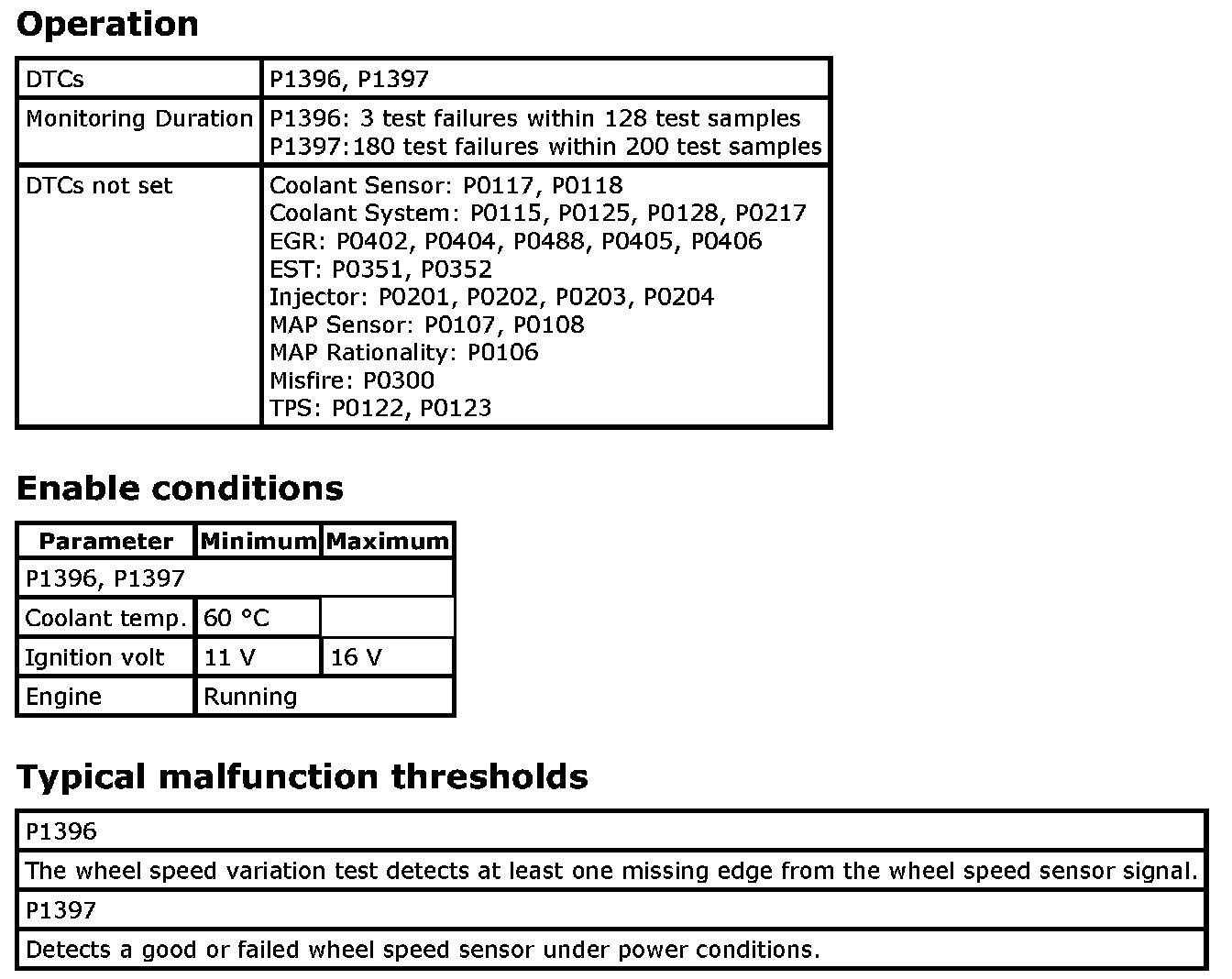

Wheel Speed Sensor Malfunction Monitor:

Rough Road Source Monitor:

G Sensor Monitor:
