Transaxle Control Module (TCM) Removal

  1. Disconnect the negative battery cable.
  2. Disconnect the wiring connectors.
  3. Remove the transaxle control module (TCM) and nuts.

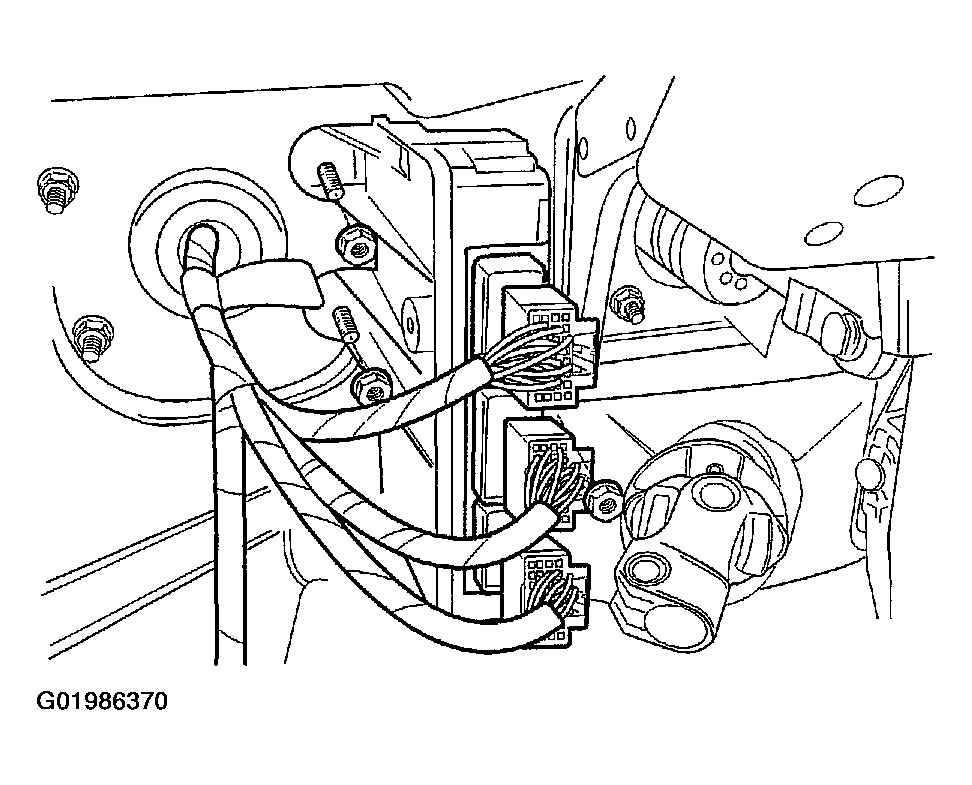

Fig 1: Removing TCM & Nuts
G01986370Courtesy of SUZUKI OF AMERICA CORP.
