G Connectors

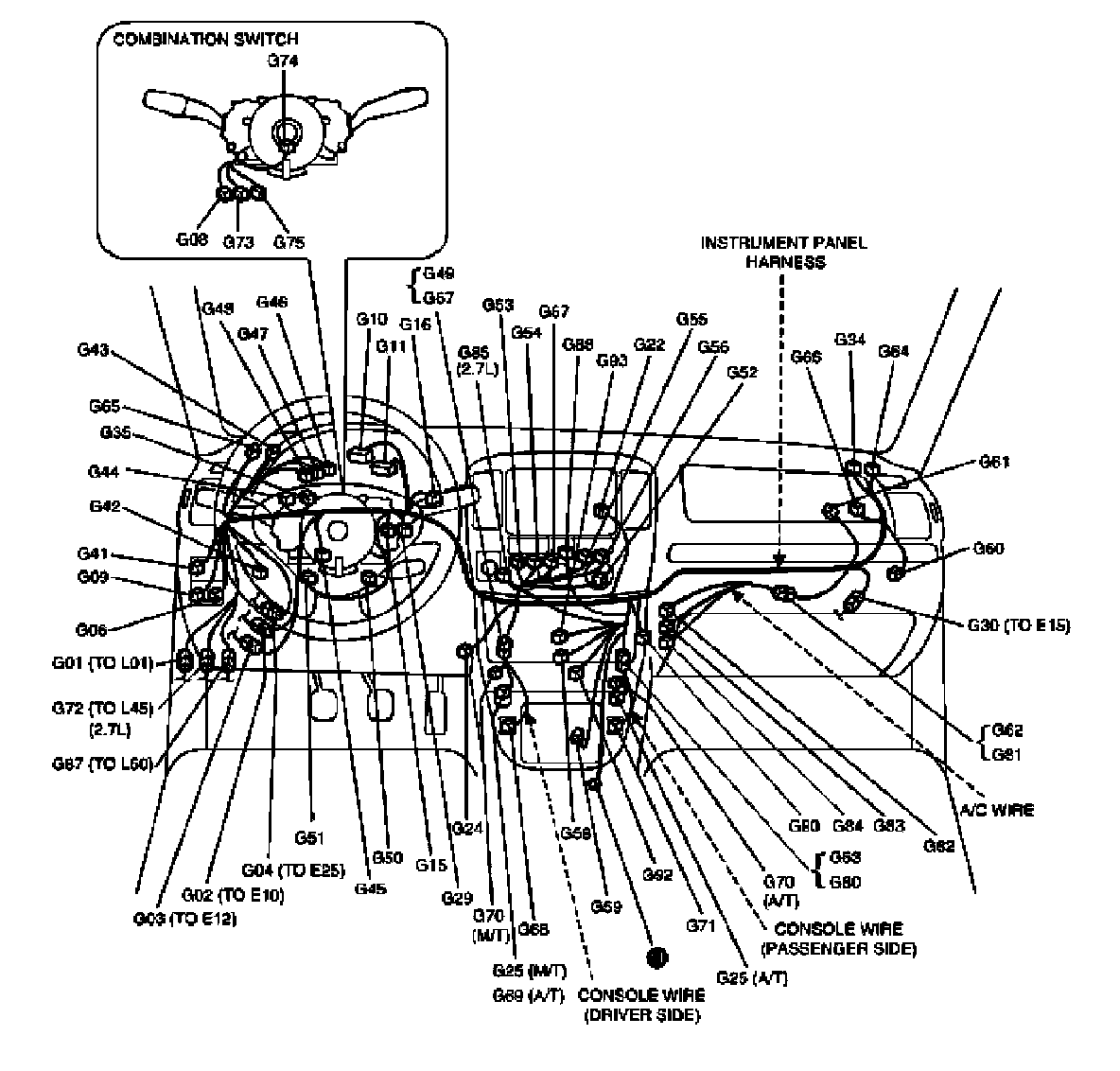

G: Instrument Panel Harness, Console Wire, A/C Wire And Combination Switch View:

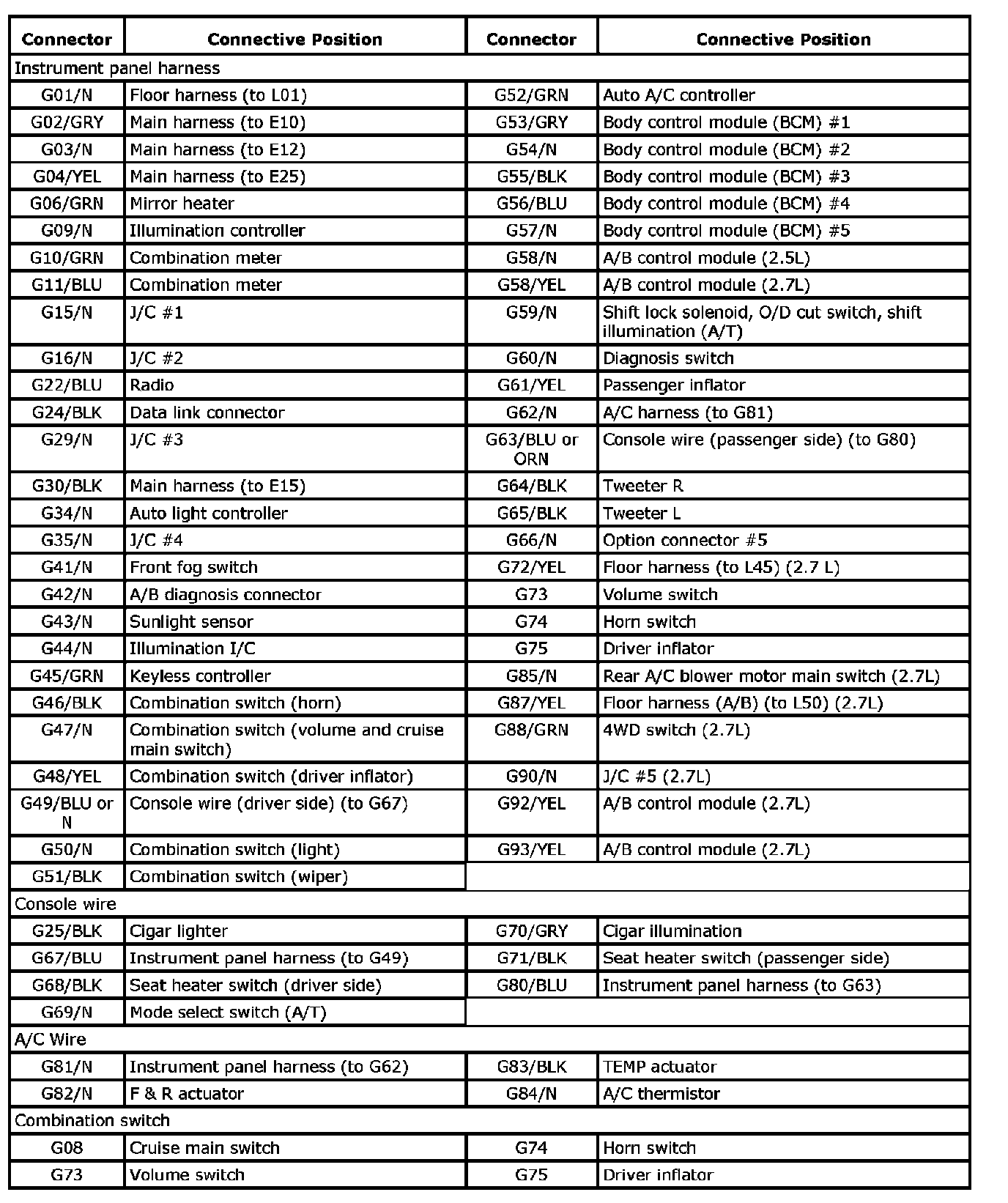

G: Instrument Panel Harness, Console Wire, A/C Wire And Combination Switch Index:
