Tightening Torque Specifications: Notes

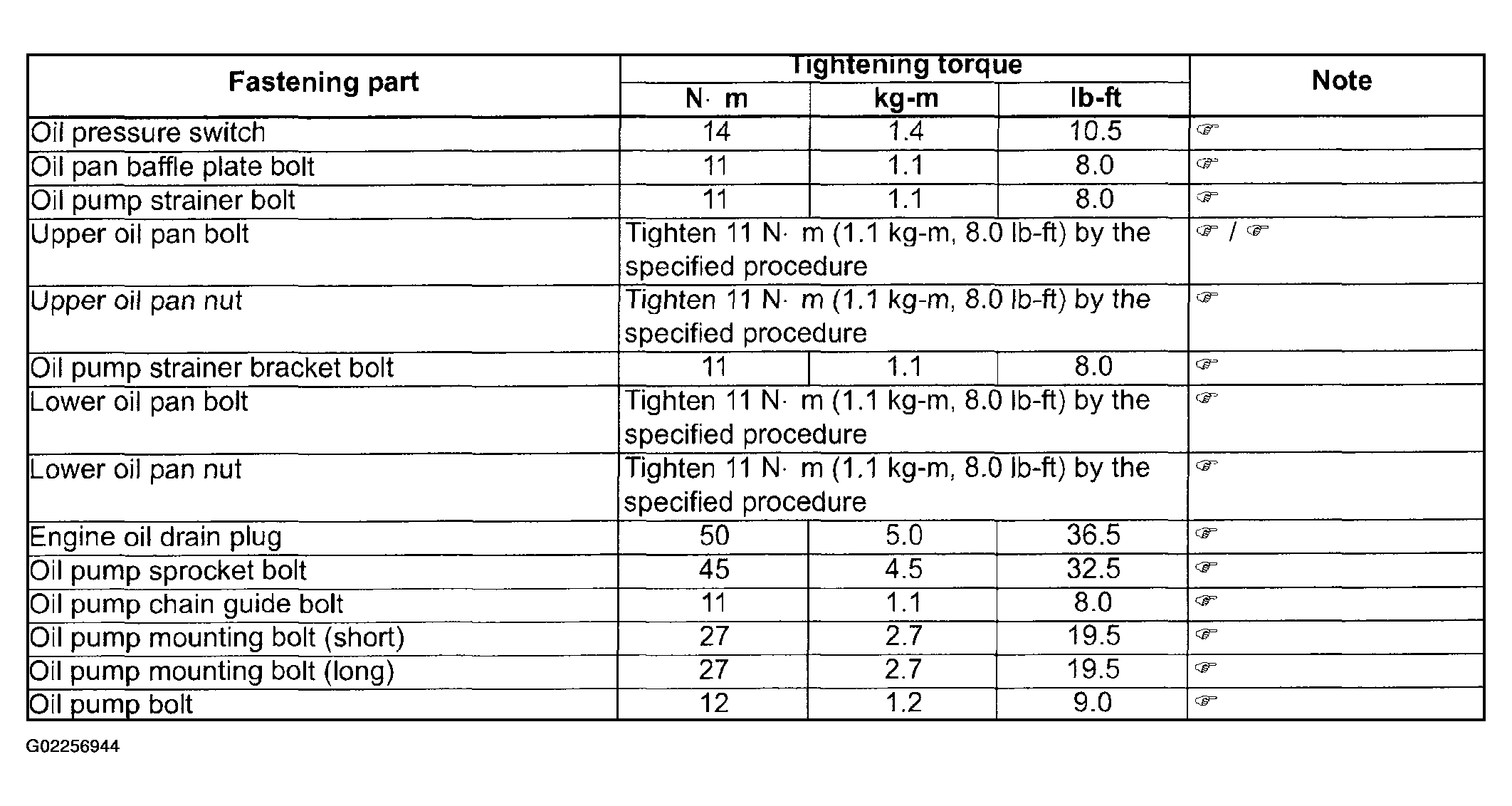

Fig 1: Tightening Torque Specifications Chart
G02256944Courtesy of SUZUKI OF AMERICA CORP.
NOTE: The specified tightening torque is also described in the following.
  1. "Oil Pan and Oil Pump Strainer Components  "
  2. "Oil Pump Chain Components  "
  3. "Oil Pump Components  "
