DTC Troubleshooting

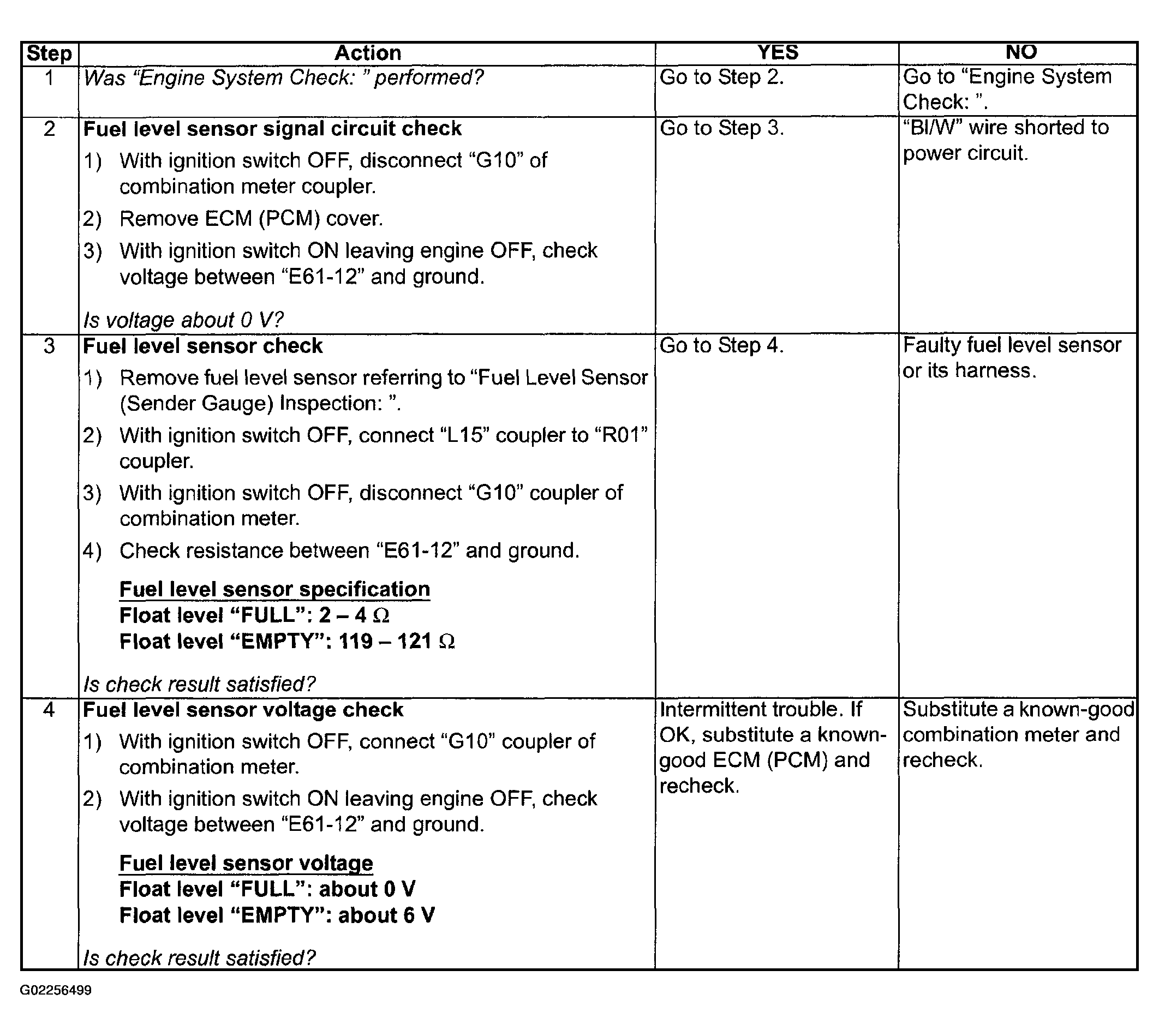

Fig 1: DTC P0463: Fuel Level Sensor Circuit High Input Troubleshooting Chart
G02256499Courtesy of SUZUKI OF AMERICA CORP.
