Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component |
Location |

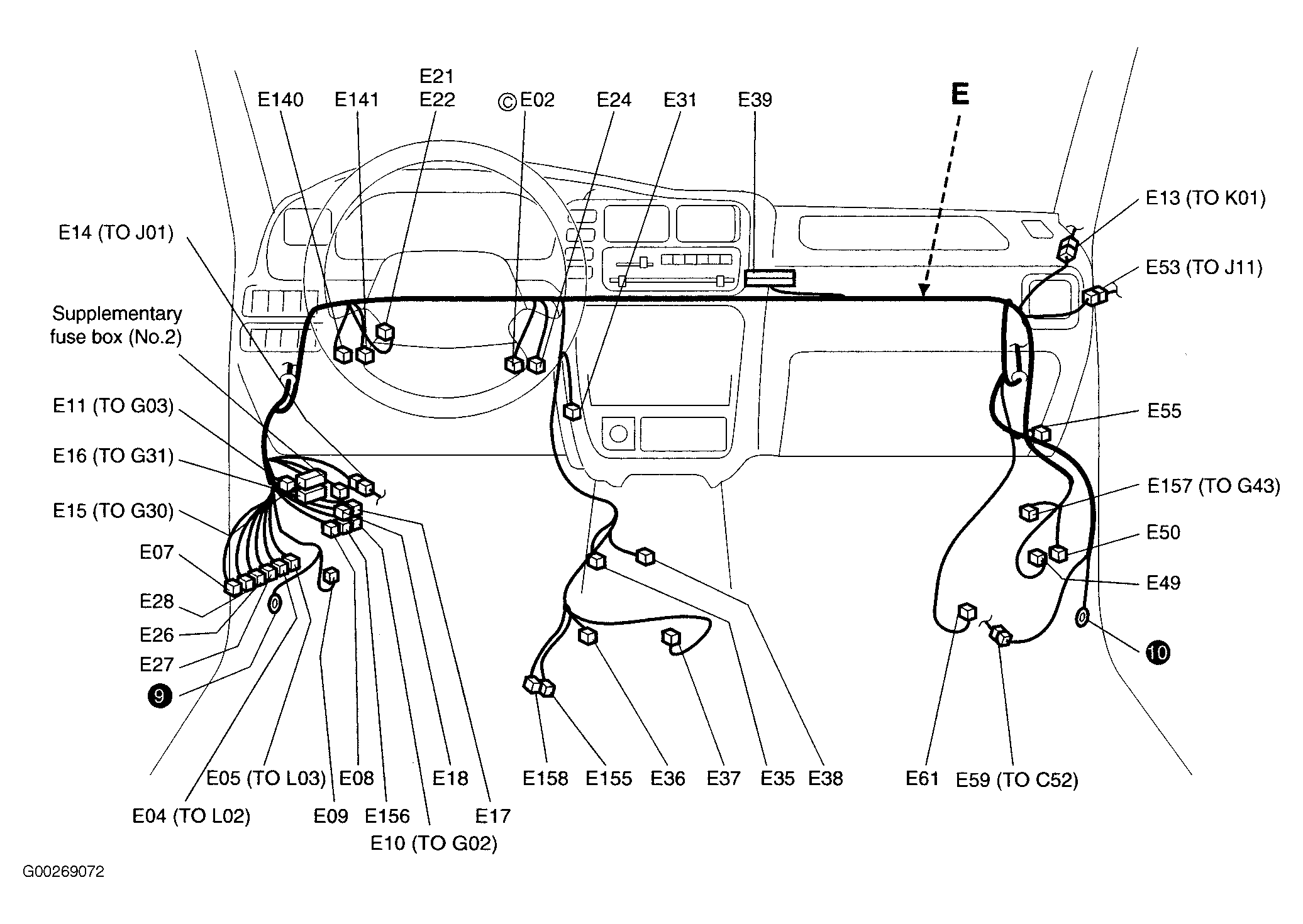

| Supplementary Fuse Box (No. 2) |
Lower left side of dash. See Figure
. |
| Underdash Fuse/Relay Box (E26, E27, E28) |
At lower left side of dash. See Figure
. |
| Underhood Fuse/Relay Box (A01, A02) |
At right side of engine compartment. See Figure
. |
