Tightening Torque Specifications

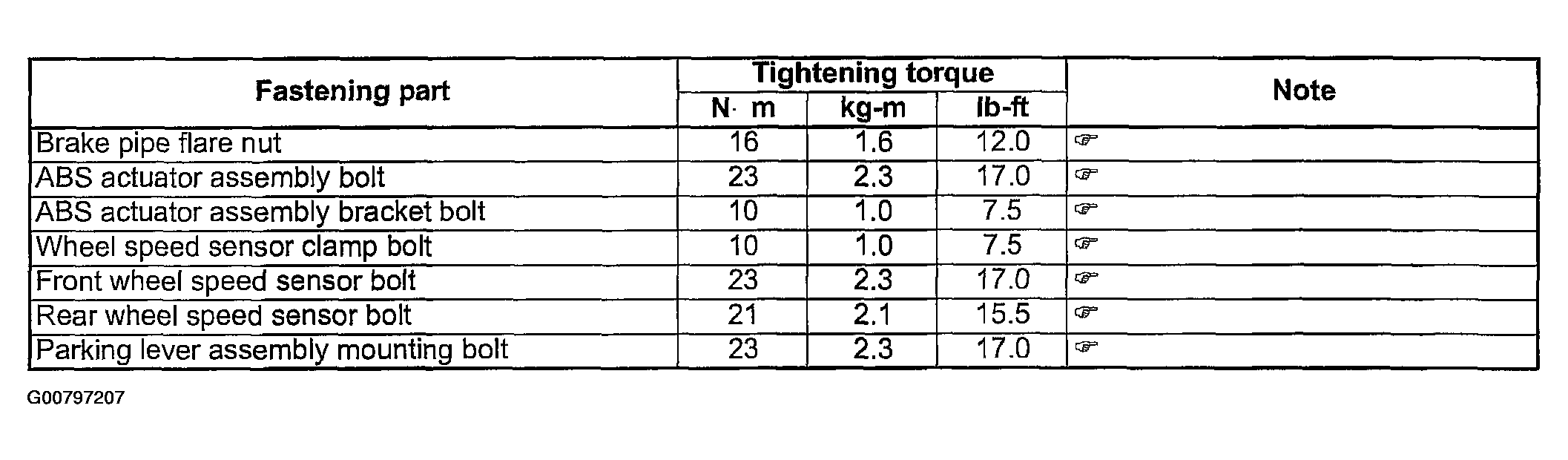

Fig 1: Tightening Torque Specifications Table
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
