Ignition System Check: Notes

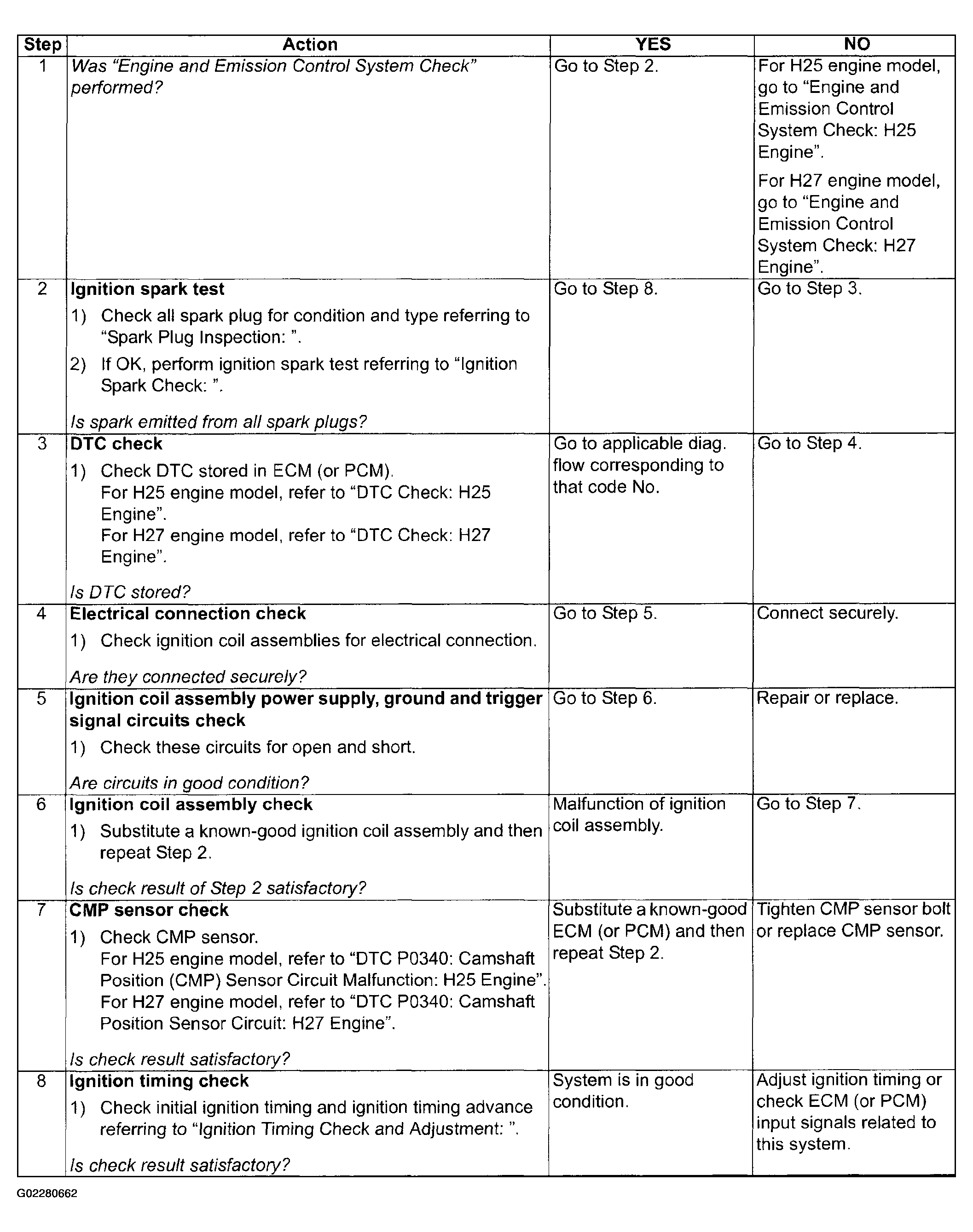

Fig 1: Ignition System Check Chart
G02280662Courtesy of SUZUKI OF AMERICA CORP.
