Tightening Torque Specifications

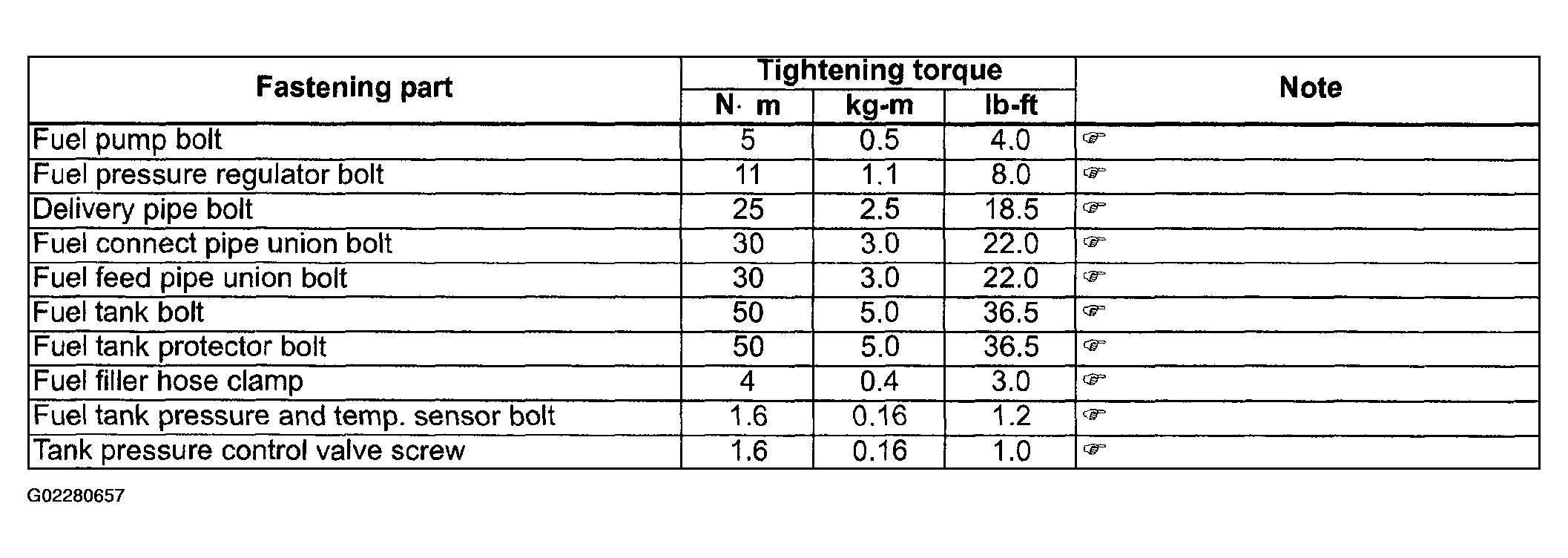

Fig 1: Tightening Torque Specifications
G02280657Courtesy of SUZUKI OF AMERICA CORP.
NOTE: The specified tightening torque is also described in the following.FUEL SYSTEM COMPONENTS
