Transaxle Control Module Circuit Diagram

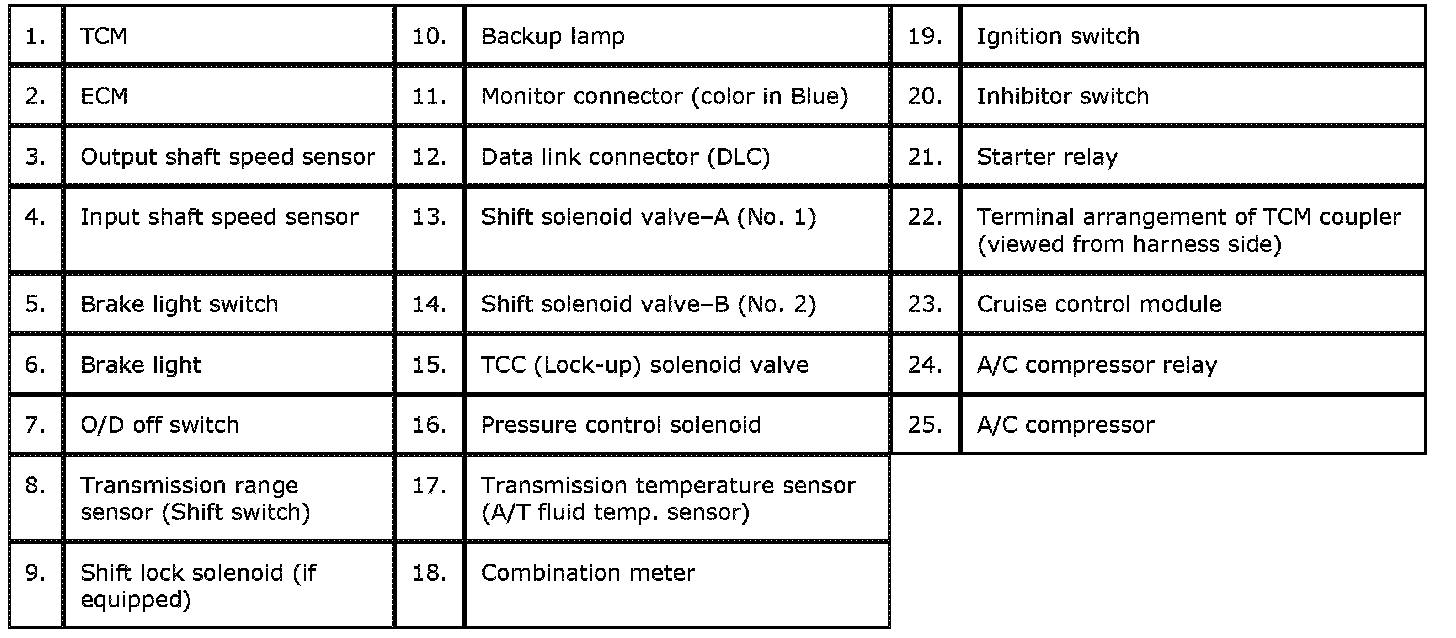

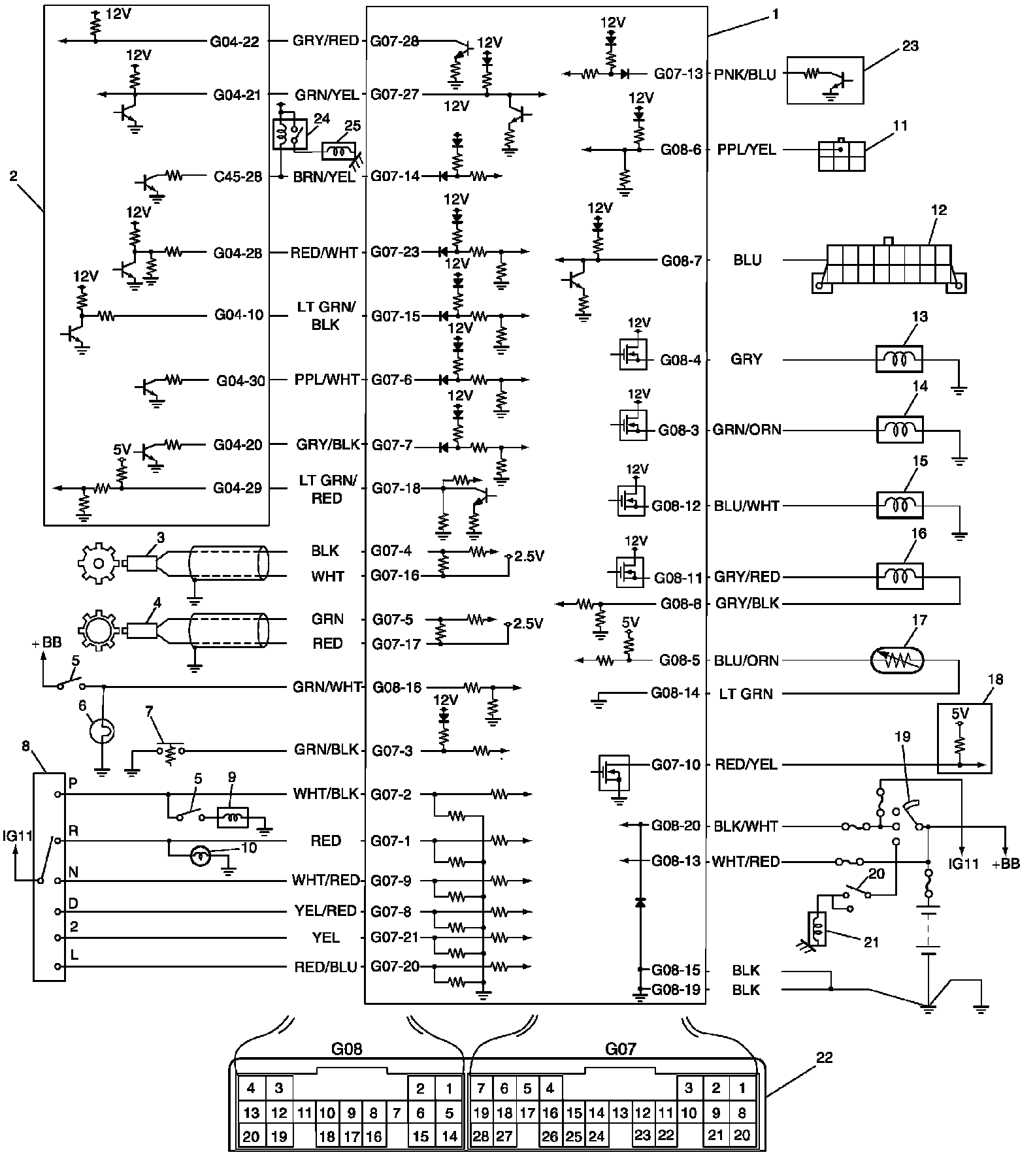

Transaxle Control Module Circuit Diagram Part 1:



Transaxle Control Module Circuit Diagram Part 2:
