Fuse: Locations

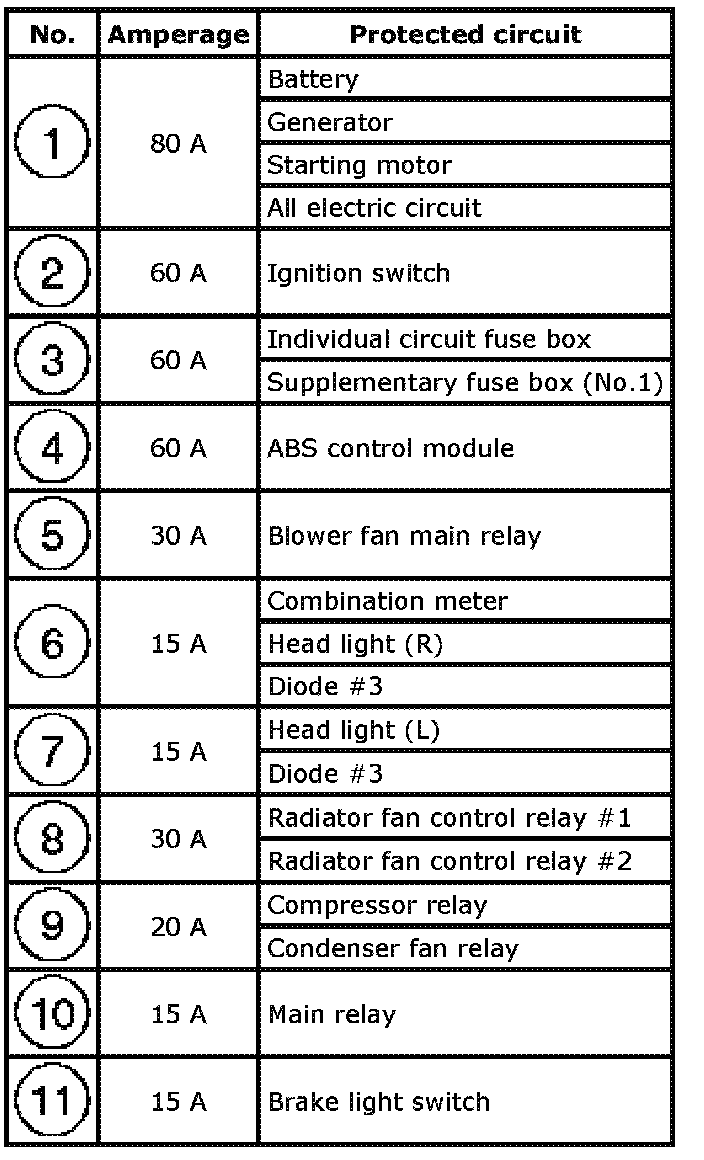

Application Table:

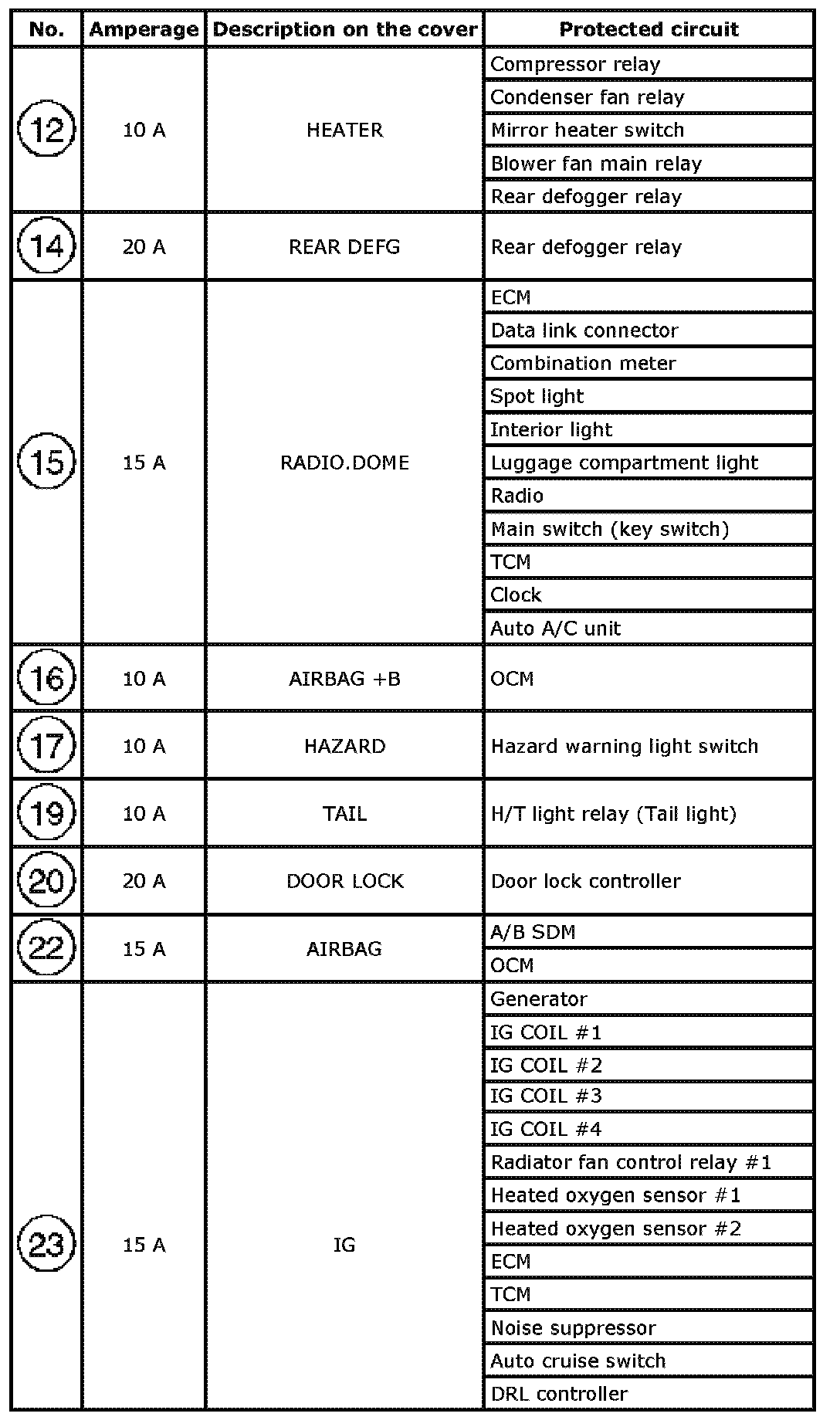

Application Table:

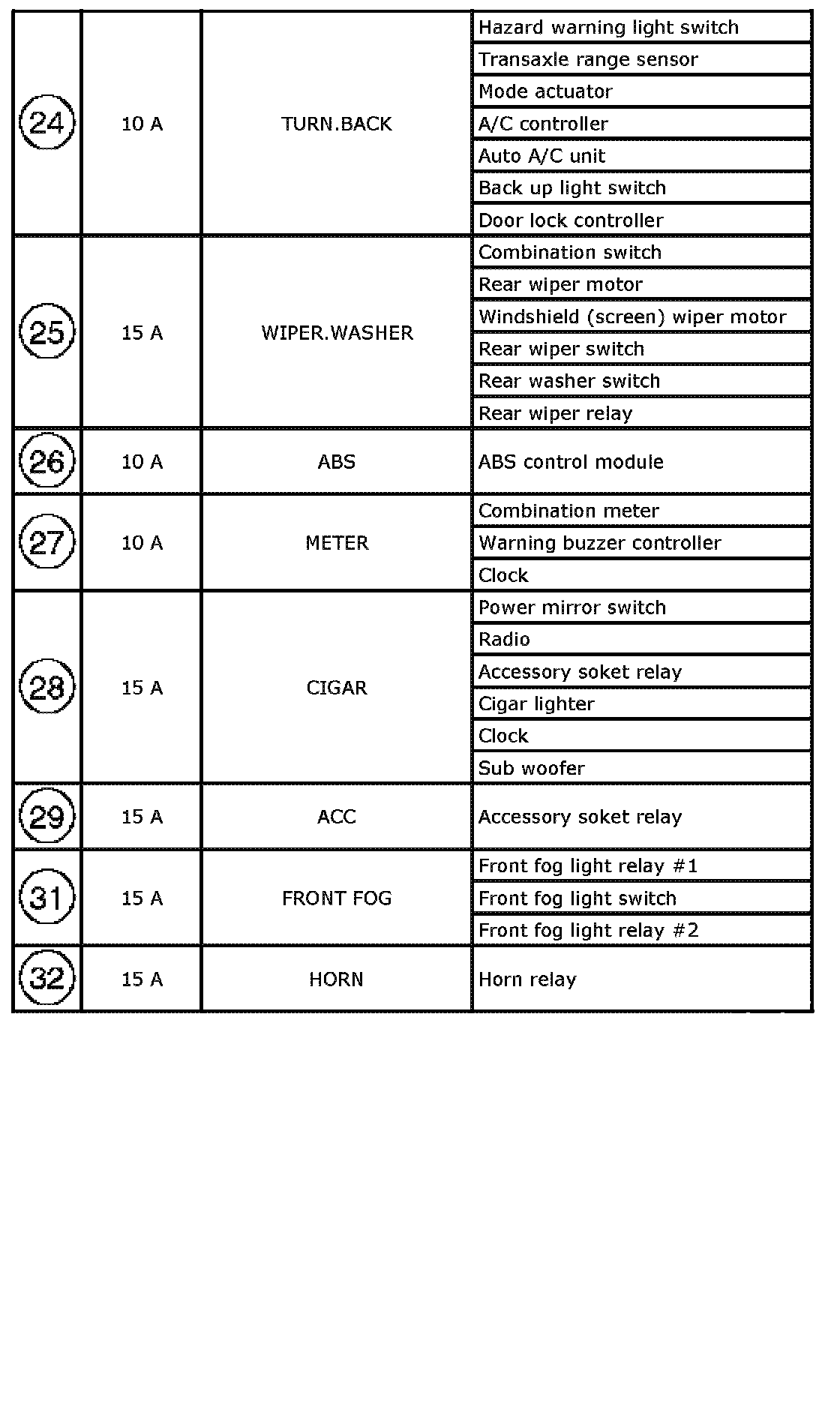

Application Table:



Application Table:



Fuse Box View:



Fuse Box View:



Fuse Box View:



Engine Compartment:



Under Dash Board:



Engine Compartment 1 Of 3:



Engine Compartment:



Under Dash Board:



Under Dash Board:
