Sub Switch

Power Window Main Switch Inspection

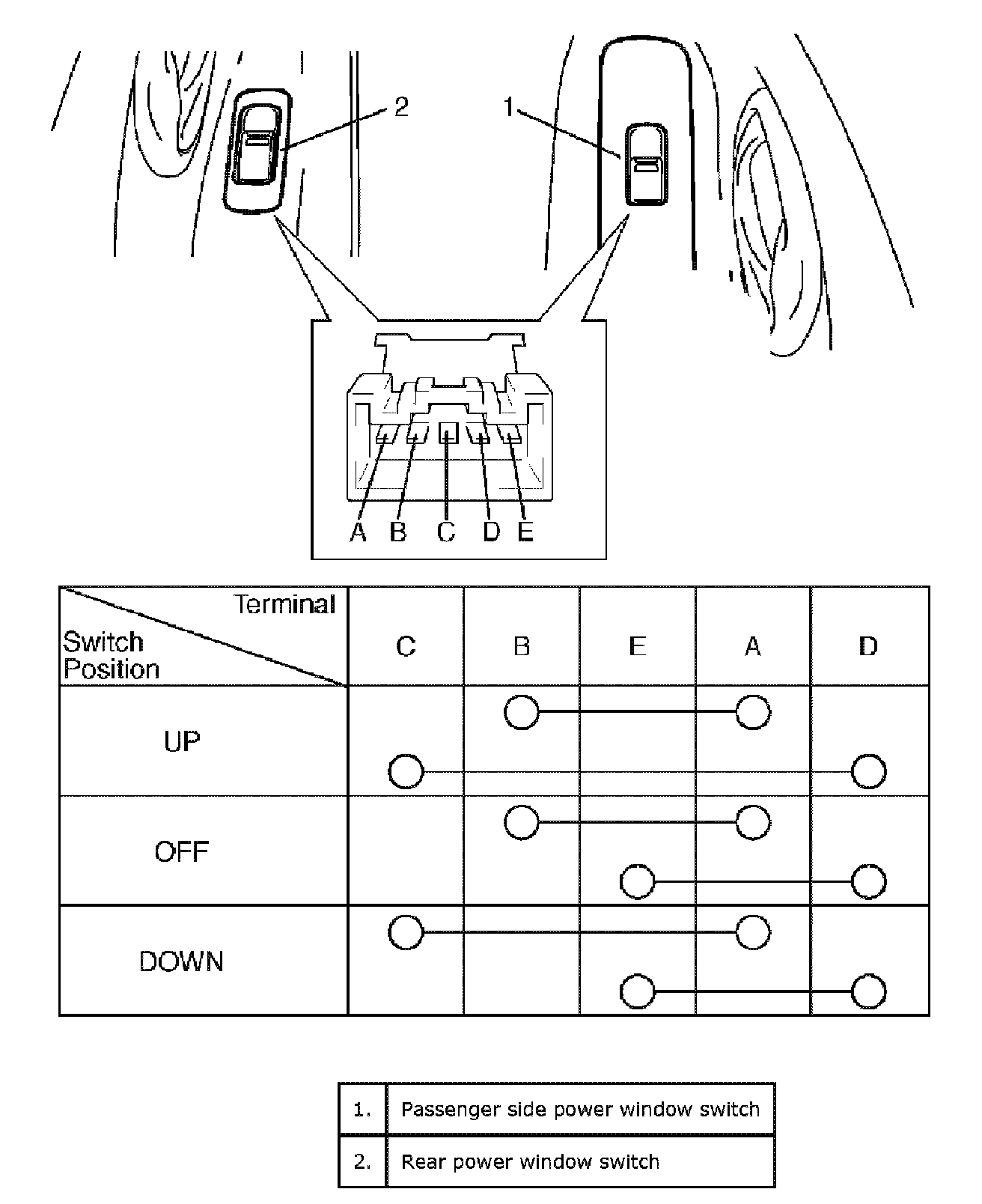

Power Window Sub Switch Inspection:




Check for continuity between terminals at each switch condition. If check result is not as specified, replace switch.
