Ignition System Components Location

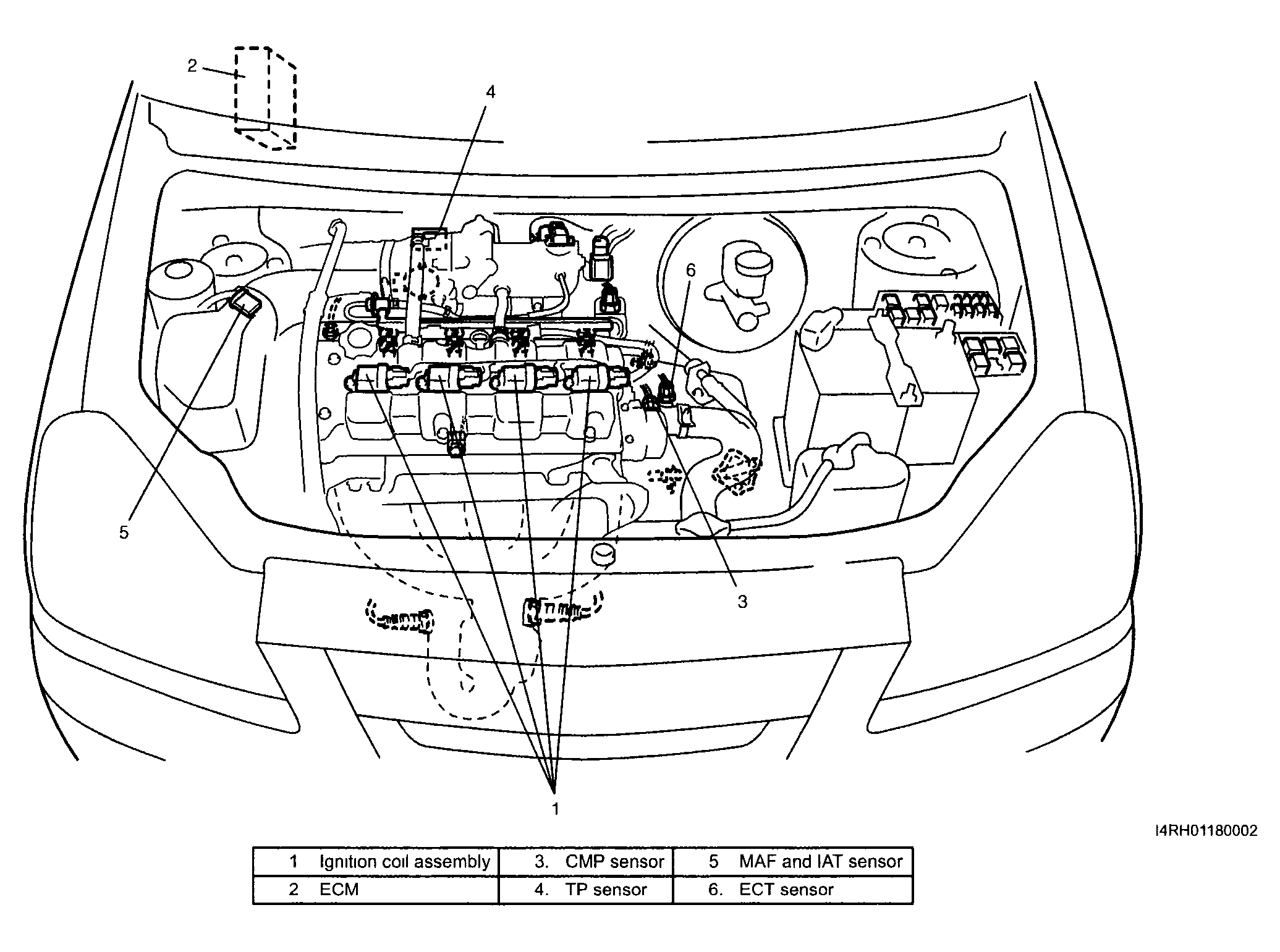

Fig 1: Identifying Ignition System Components Location
G04014283Courtesy of SUZUKI OF AMERICA CORP.
