For Notchback Model

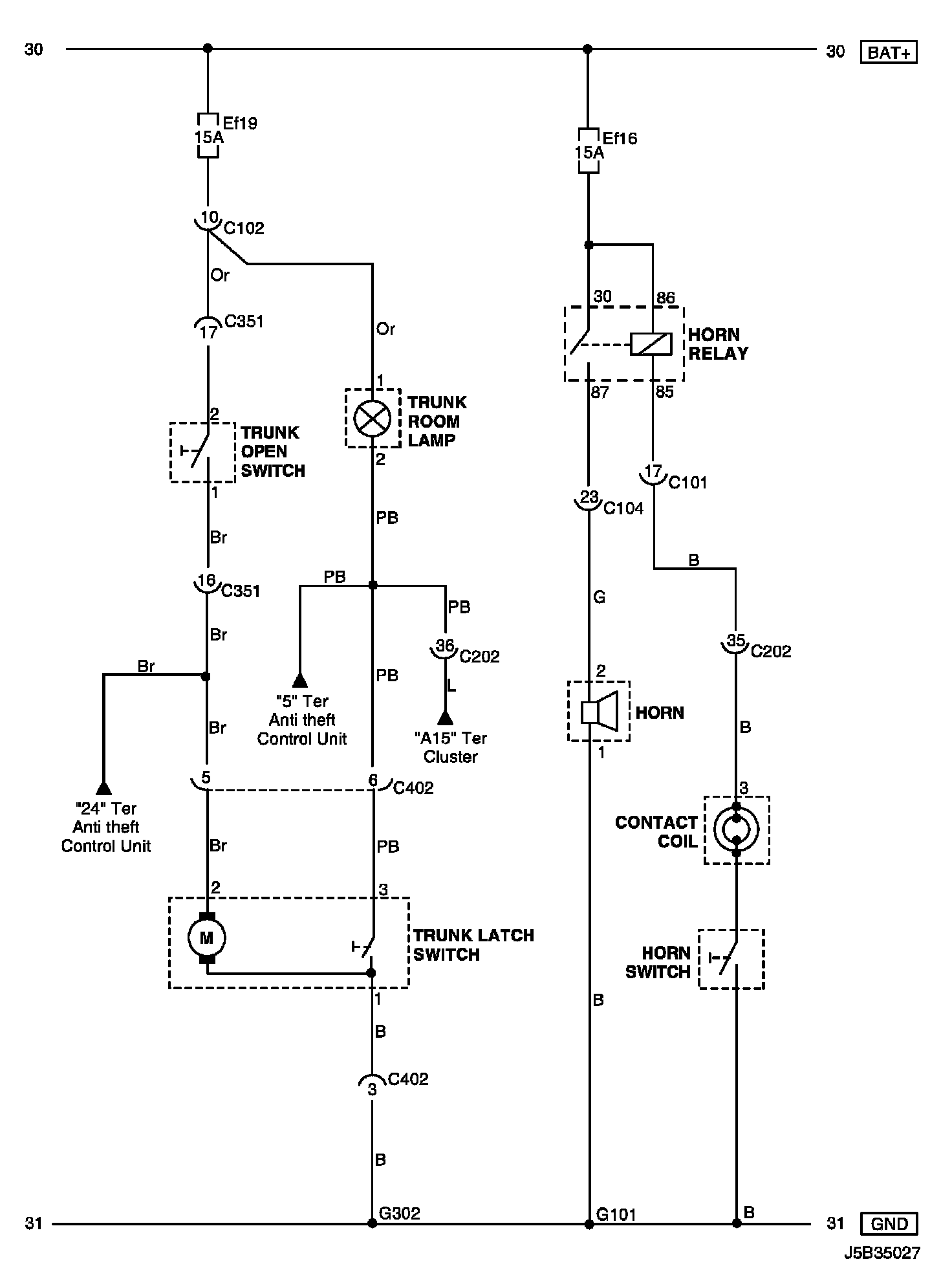

Trunk/Tailgate Open Switch, Trunk Latch Switch, Trunk Room Lamp and Horn Circuit Wiring Diagram:
WIRING DIAGRAM
C101 - G302:
CONNECTOR INFORMATION

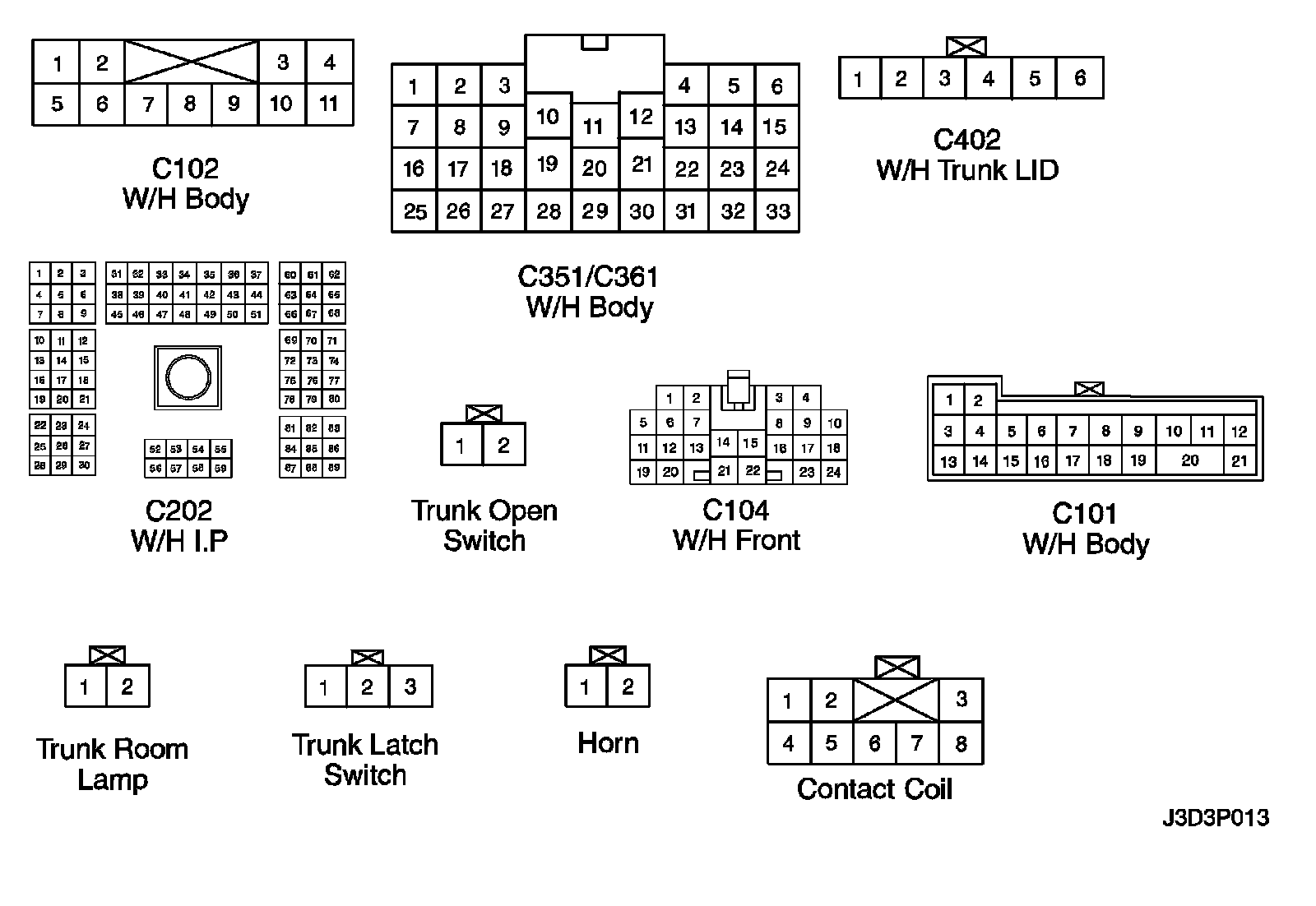

Connector Identification Symbol and Pin Number Position:
CONNECTOR IDENTIFICATION SYMBOL AND PIN NUMBER POSITION

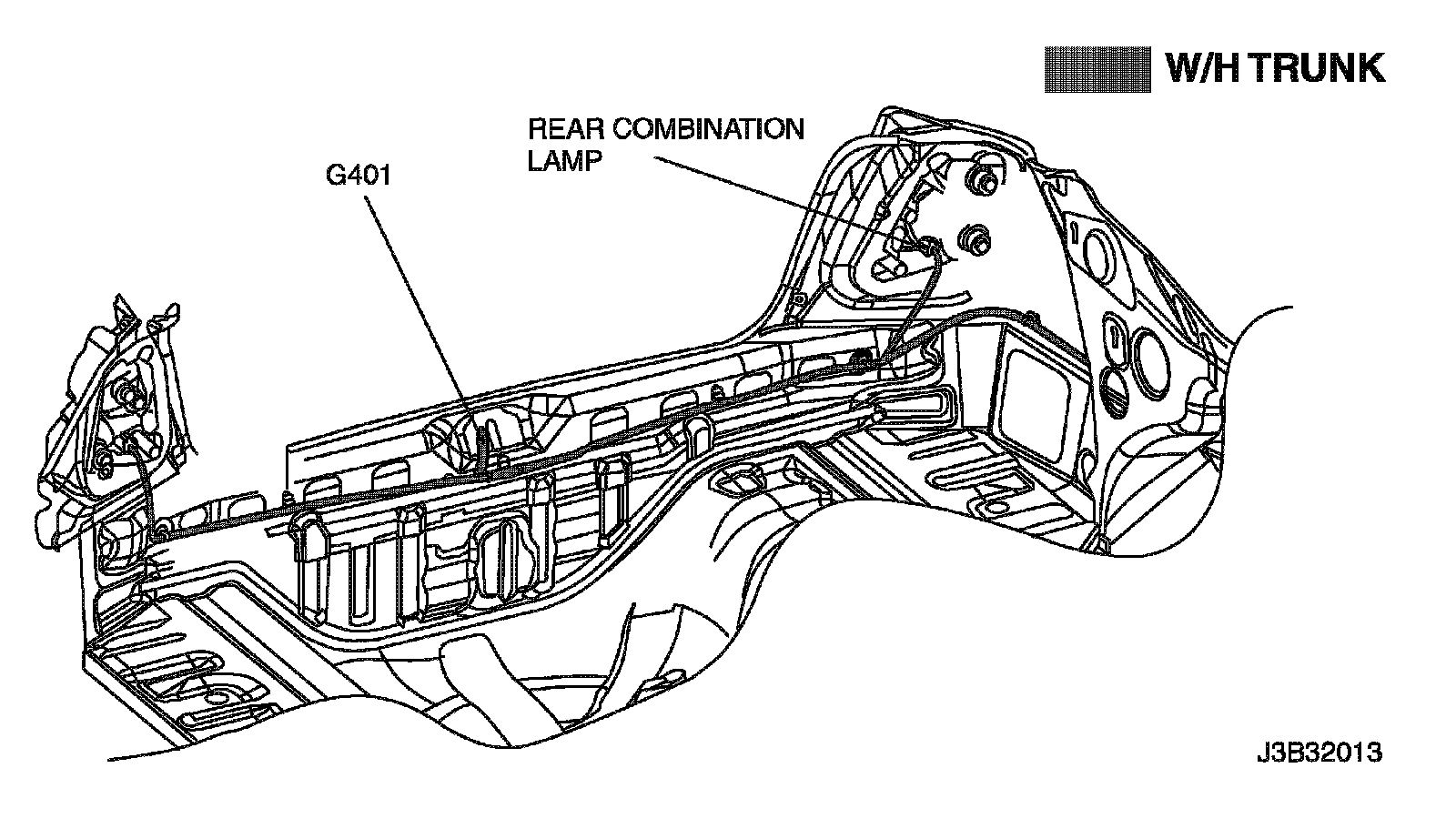

W/H TRUNK:

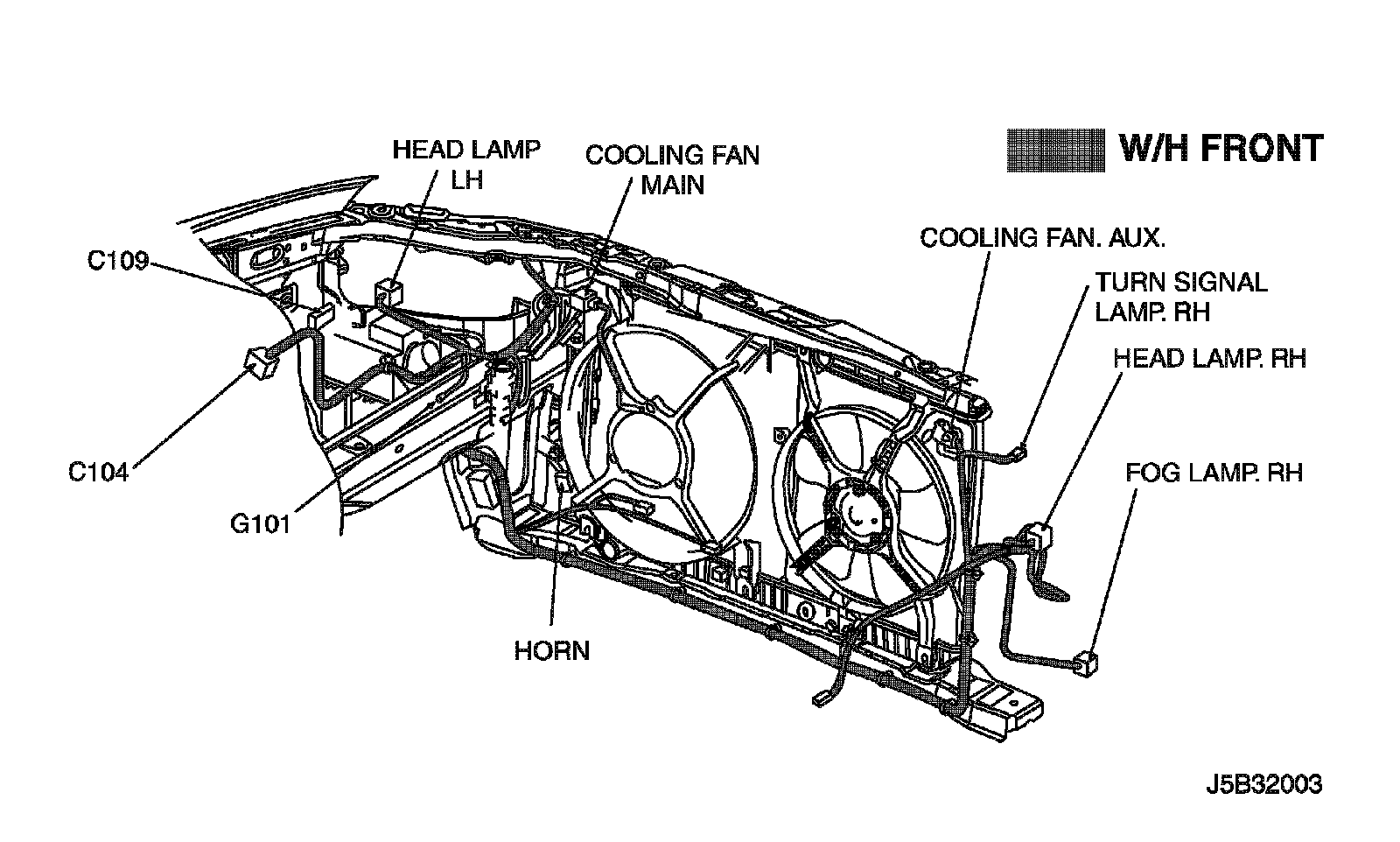

W/H FRONT:

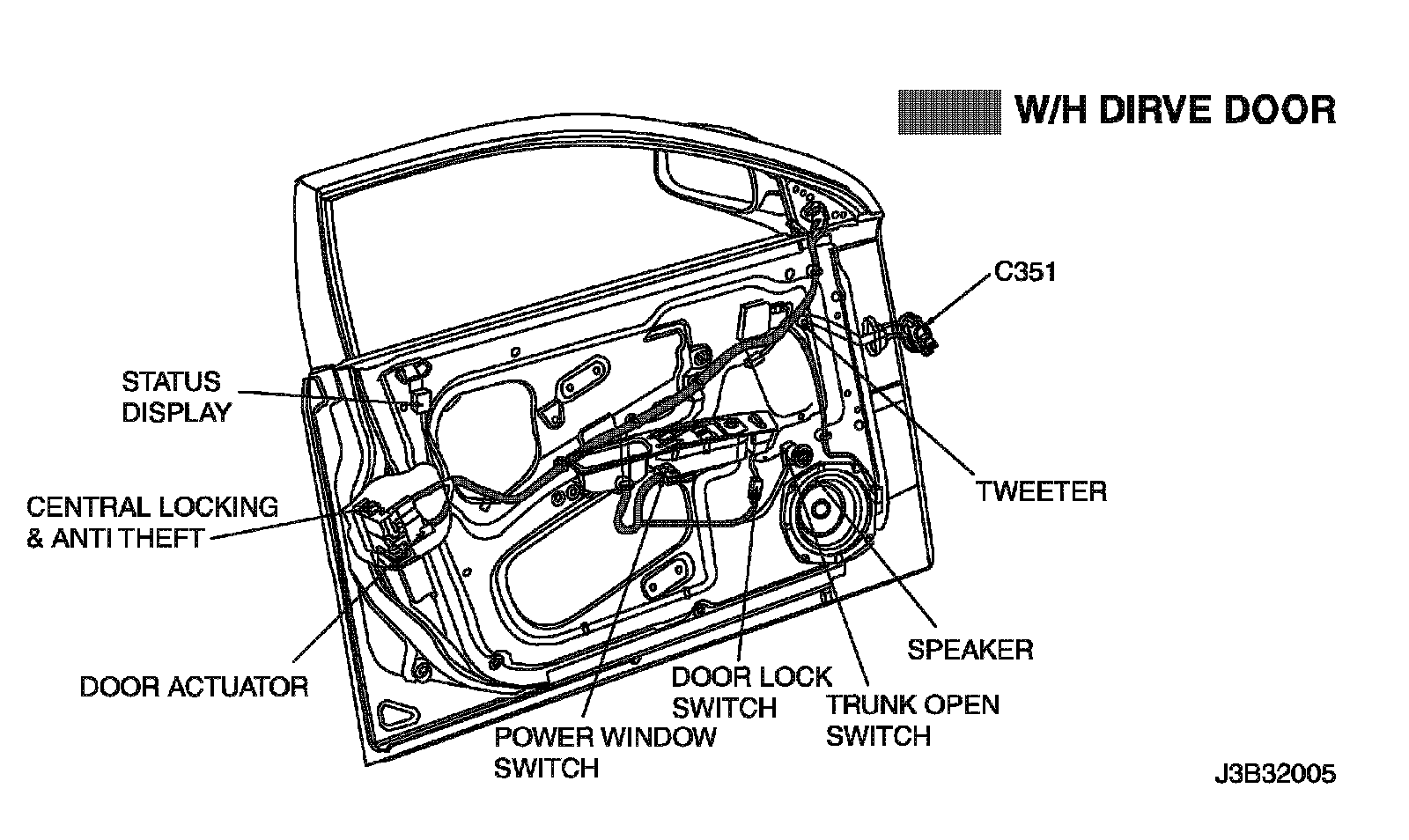

W/H DRIVE DOOR:

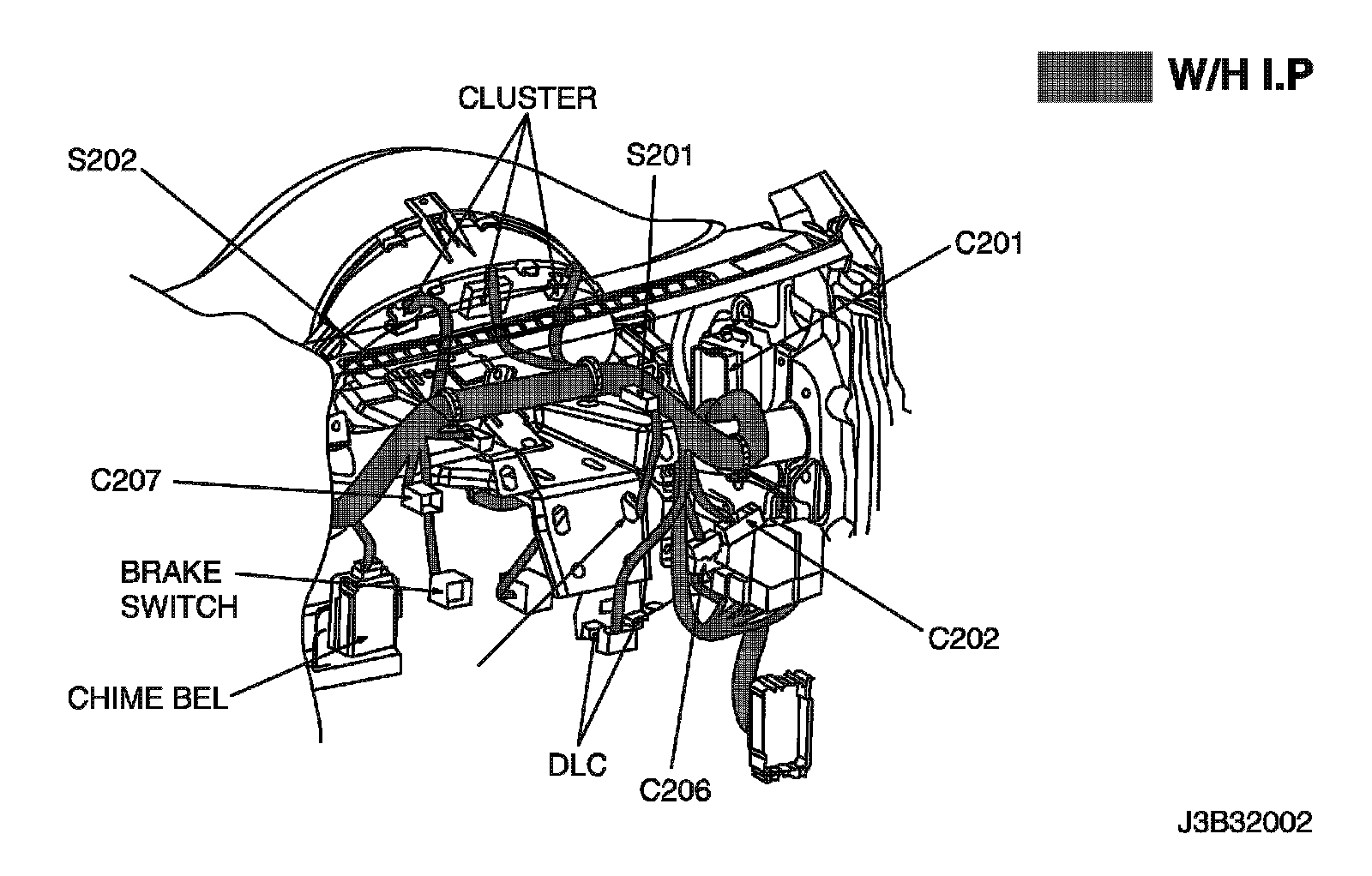

W/H INSTRUMENT PANEL:
POSITION OF CONNECTORS AND GROUNDS
