Catalyst Monitor



DTC Description / Detecting Condition / Confirmation Procedure

P0420 Refer to [DTC P0420: Catalyst Oxygen Sensor Low Efficiency].

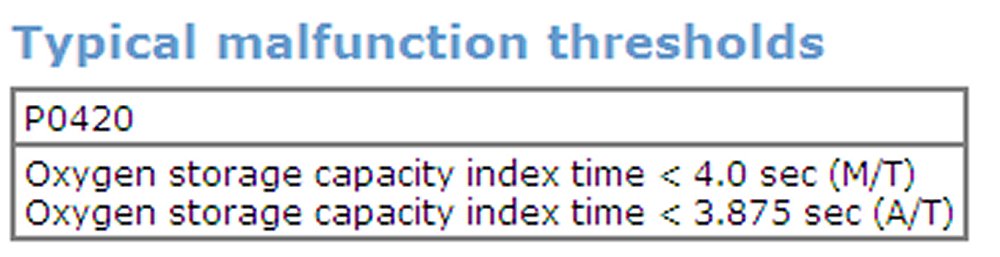

Catalyst Bank 1 Low Efficiency Monitor

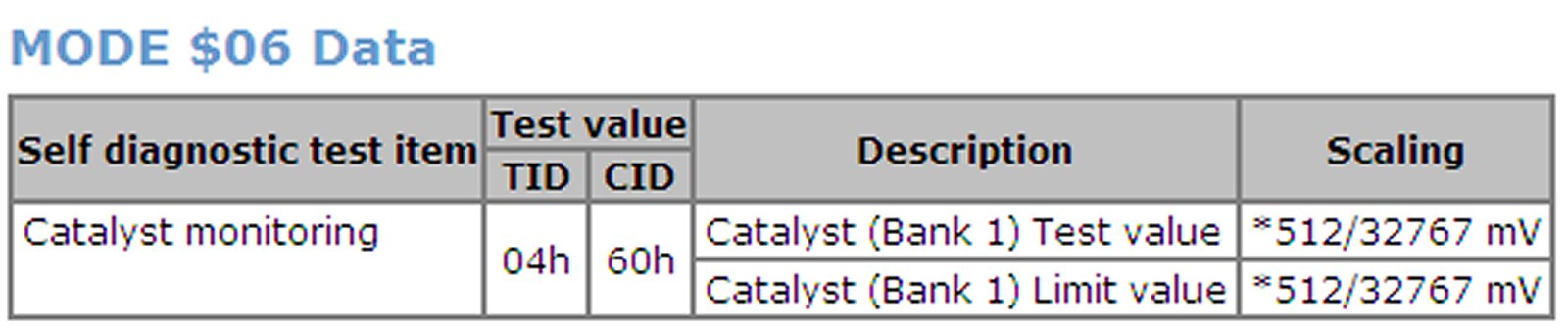

MODE $06 Data
