DTC P0102 Mass Air Flow (MAF) Sensor Low Input: Notes

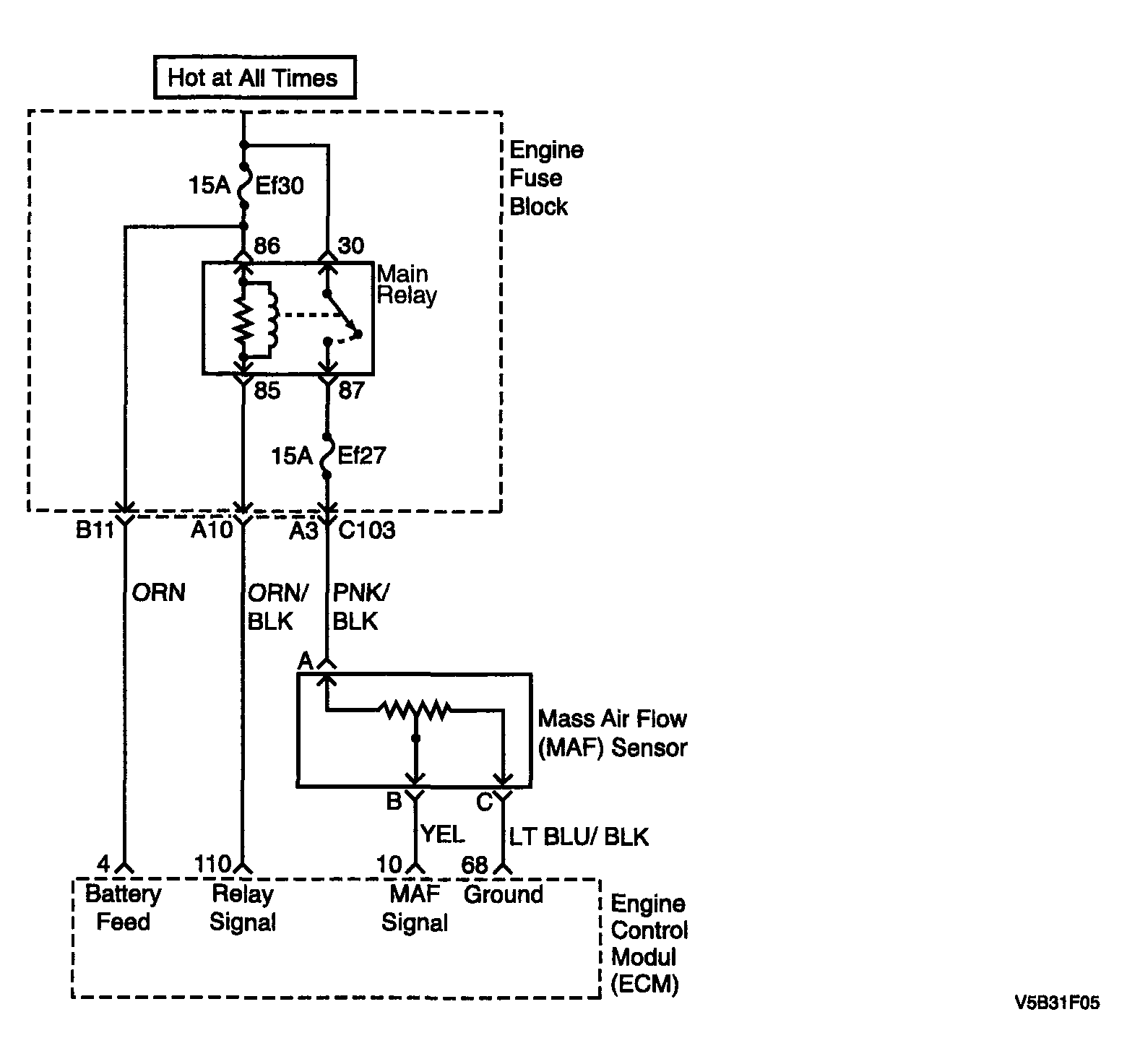

Fig 1: P0102 Mass Air Flow (MAF) Sensor Low Input - Circuit Diagram
G04094423Courtesy of SUZUKI OF AMERICA CORP.
